Details
Working Load Limit
16 TON
Flange
7"
Models
3

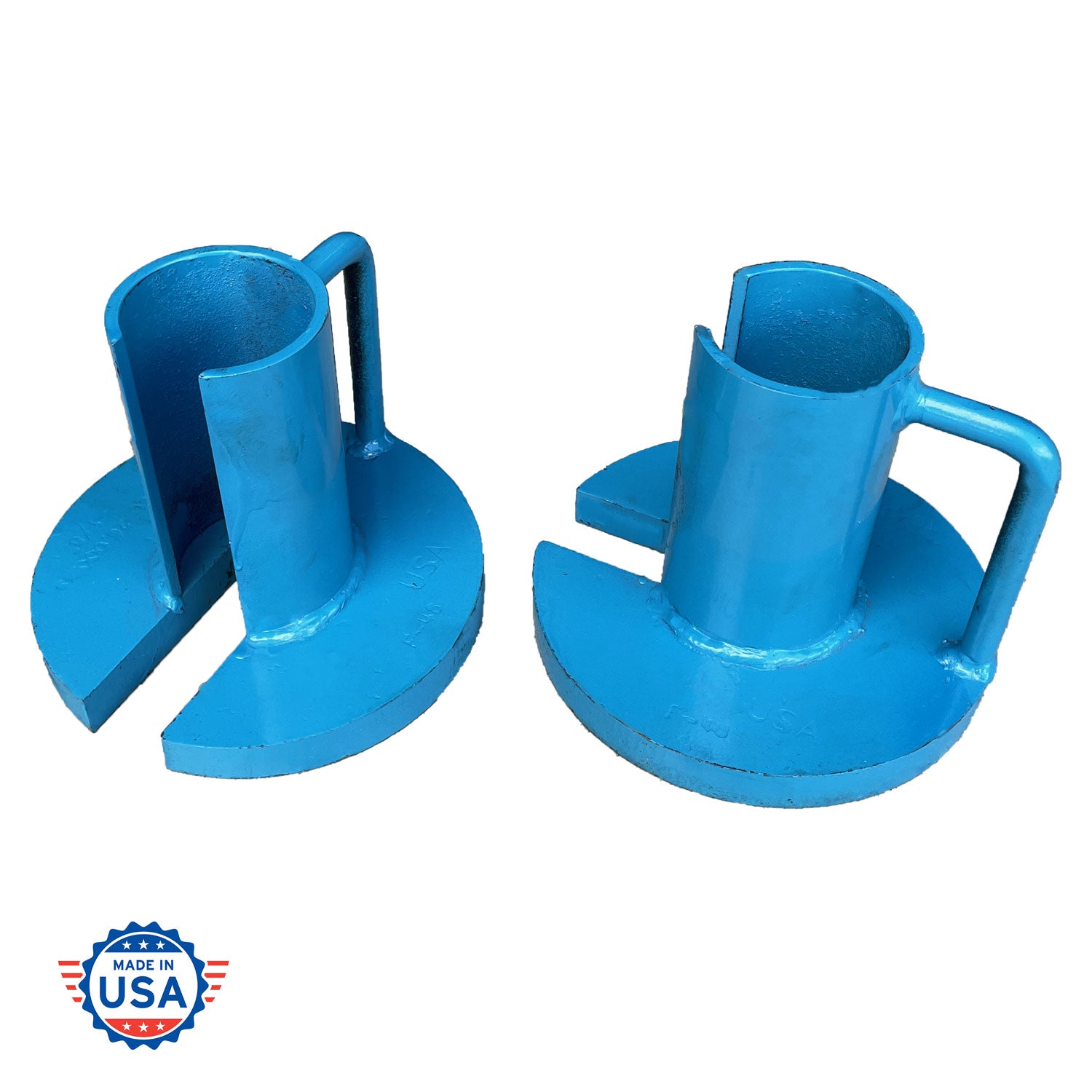

Made in USA Tea Cup Pipe Carriers providing an efficient way to lift concrete pipe, sewers, or boxes safely. All Tea Cup options include a handle which allows the carrier to be guided to smaller diameter pipes with ease.
- Efficient way to handle concrete pipes
- Lightweight design
- Available with 7" and 12" diameter flanges
- To be used with our special T341 — Pipe Carrier Sling
Dimensions & Working Load Limits
| Part # | A (in) | B (in) | C (in) | D (in) | Weight (lb) | WLL |
|---|---|---|---|---|---|---|
| LTC-06 | 7.00 | 2.50 | 0.938 | 5.75 | 26 | 6 TON |
| LTC-13 | 7.00 | 2.50 | 1.250 | 5.75 | 26 | 13 TON |
| LTC-16 | 7.00 | 3.00 | 1.375 | 5.75 | 27 | 16 TON |
⚠
Never exceed the rated Working Load Limit. Always follow applicable domestic safety regulations. For use only with the compatible T341 Pipe Carrier Sling — do not substitute.
CONCRETE PIPE LIFTING │ 7" FLANGE │ HANDLE INCLUDED
