Order Sheet
| SKU | Capacity | Price | Qty | |
|---|---|---|---|---|
| 865800 | 1Ton | $704.54 | ||
| 855601 | 2Ton | $815.71 | ||
| 865331 | 3 Ton | $890.81 | ||
| 865301 | 4.5 Ton | $1,131.74 | ||
| 865411 | 6 Ton | $1,420.10 | ||
| 855400 | 7.5 Ton | $1,784.71 |
865800$704.54
855601$815.71
865331$890.81
865301$1,131.74
865411$1,420.10
855400$1,784.71

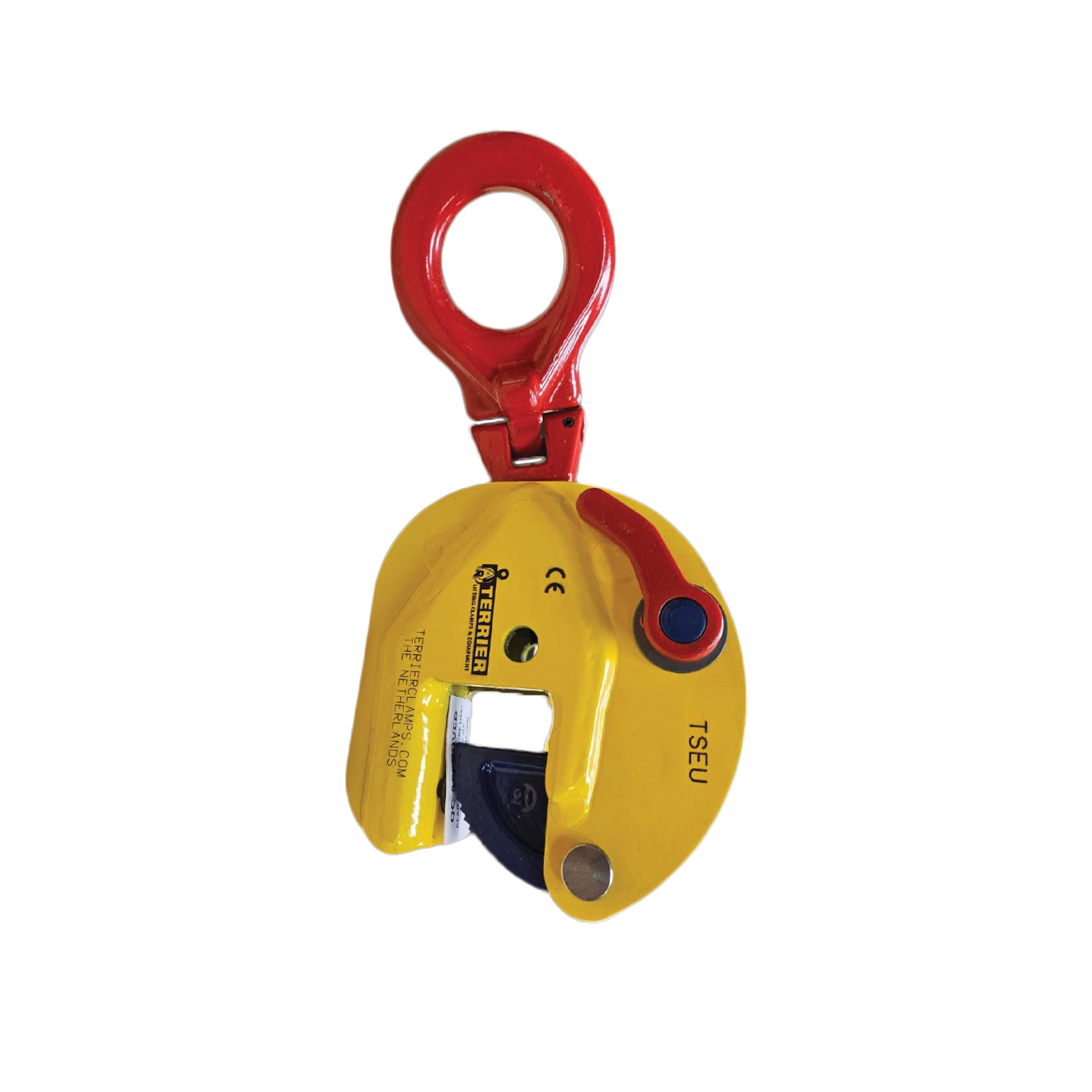

The Terrier TSEU Universal Lifting Plate Clamps are engineered for versatile and secure lifting of steel plates and other flat materials. With adjustable jaws and a robust design, they ensure a strong grip and safe handling in various applications. Ideal for industrial and construction use, these clamps provide reliable performance and ease of operation. The articulated lifting shackle guarantees a pressure grip in every position, even when side loading up to 90 degrees. Note a lower load capacity when lifting at an angle higher than 45 degrees. Please check WLL illustrations below.
- Jaw openings available from: 0 to 5.90 in.
- TSEU / STSU types are supplied with enlarged jaw opening
- Working load limit (WLL) 1,650 - 66,000 lbs (Higher WLL available upon request)
- Min. WLL is 10% of max. WLL
- Clamp is locked in closed as well as open position
- Tough quality heavy-duty welded shell body
- Maintenance-friendly. Easy to exchange parts are available upon request
Note: Surface hardness of the material lifted must not exceed 37 HRC/345 Hb
