Order Sheet
| SKU | WLL | Lift | Price | Qty | |
|---|---|---|---|---|---|
| TR7LH-0075-5 | 75 t | 5' | $436.00 |
|
|
| TR7LH-0075-10 | 75 t | 10' | $485.00 |
|
|
| TR7LH-0075-15 | 75 t | 15' | $531.00 |
|
|
| TR7LH-0075-20 | 75 t | 20' | $581.00 |
|
|
| TR7LH-0100-5 | 1 t | 5' | $469.00 |
|
|
| TR7LH-0100-10 | 1 t | 10' | $501.00 |
|
|
| TR7LH-0100-15 | 1 t | 15' | $565.00 |
|
|
| TR7LH-0100-20 | 1 t | 20' | $630.00 |
|
|
| TR7LH-0150-5 | 1.5 t | 5' | $559.00 |
|
|
| TR7LH-0150-10 | 1.5 t | 10' | $622.00 |
|
|
| TR7LH-0150-15 | 1.5 t | 15' | $662.00 |
|
|
| TR7LH-0150-20 | 1.5 t | 20' | $721.00 |
|
|
| TR7LH-0200-10 | 2 t | 10' | $680.00 |
|
|
| TR7LH-0200-20 | 2 t | 20' | $838.00 |
|
|
| TR7LH-0300-5 | 3 t | 5' | $803.00 |
|
|
| TR7LH-0300-10 | 3 t | 10' | $898.00 |
|
|
| TR7LH-0300-15 | 3 t | 15' | $995.00 |
|
|
| TR7LH-0300-20 | 3 t | 20' | $1,126.00 |
|
|
| TR7LH-0600-5 | 6 t | 5' | $1,273.00 |
|
|
| TR7LH-0600-10 | 6 t | 10' | $1,446.00 |
|
|
| TR7LH-0600-15 | 6 t | 15' | $1,661.00 |
|
|
| TR7LH-0600-20 | 6 t | 20' | $1,928.00 |
|
TR7LH-0075-5
$436.00
TR7LH-0075-10
$485.00
TR7LH-0075-15
$531.00
TR7LH-0075-20
$581.00
TR7LH-0100-5
$469.00
TR7LH-0100-10
$501.00
TR7LH-0100-15
$565.00
TR7LH-0100-20
$630.00
TR7LH-0150-5
$559.00
TR7LH-0150-10
$622.00
TR7LH-0150-15
$662.00
TR7LH-0150-20
$721.00
TR7LH-0200-10
$680.00
TR7LH-0200-20
$838.00
TR7LH-0300-5
$803.00
TR7LH-0300-10
$898.00
TR7LH-0300-15
$995.00
TR7LH-0300-20
$1,126.00
TR7LH-0600-5
$1,273.00
TR7LH-0600-10
$1,446.00
TR7LH-0600-15
$1,661.00
TR7LH-0600-20
$1,928.00
Capacity Range1–75 T
Safety Factor4:1
Lift Range5' – 20'

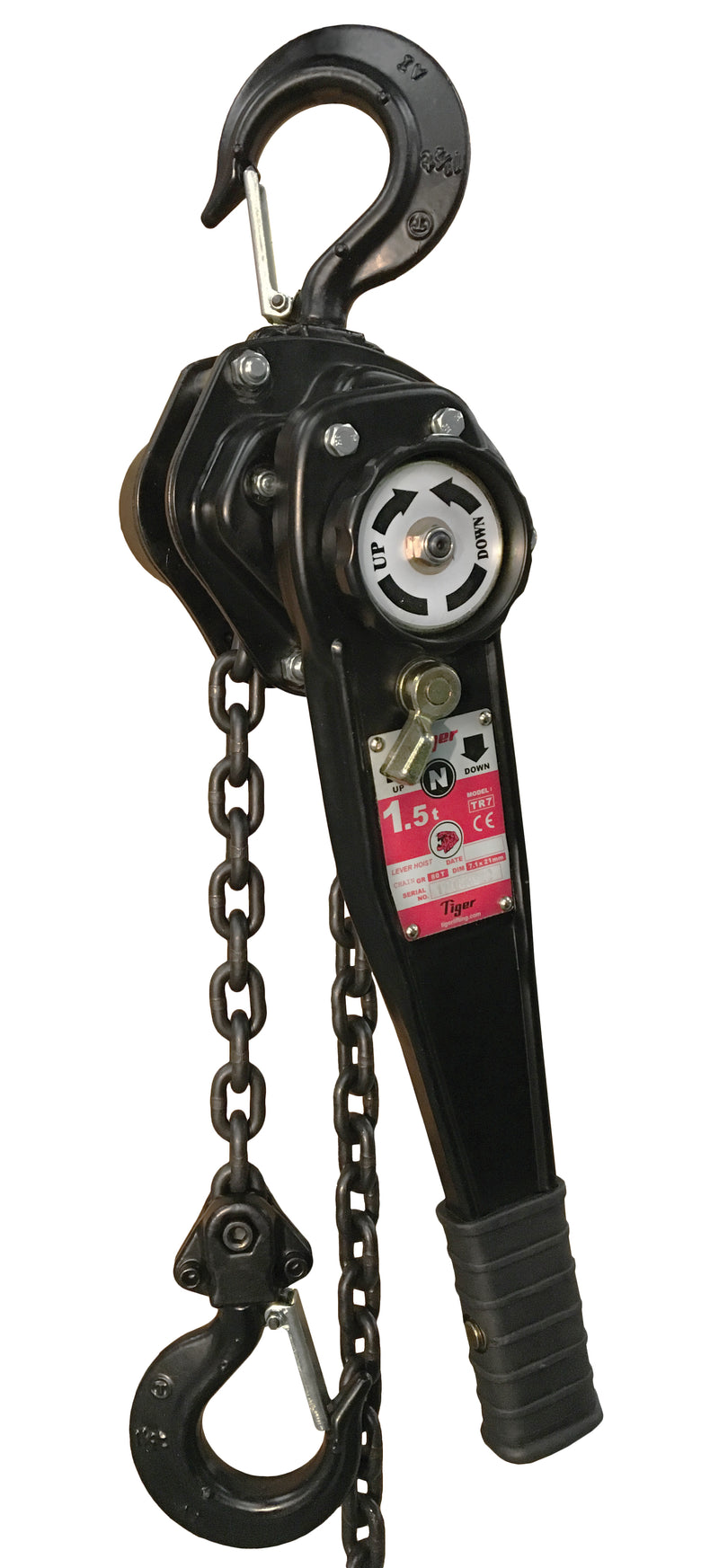

TIGER LIFTING — INDUSTRIAL LEVER HOIST · TR7LH SERIES · 1 T – 75 T · TAIWAN · DESIGN FACTOR 4:1
The Tiger Industrial Lever Hoist (TR7LH Series) is the TR7 industrial lever hoist. Heavy-duty Taiwan construction with grade 80 load chain and a robust ratchet mechanism for demanding pulling, tensioning, and lifting applications.
- TR7 industrial series — heavy-duty ratchet mechanism
- Grade 80 alloy load chain
- Forged steel hooks with safety latches
- Capacity range: 1 t – 75 t
- Design factor: 4:1 · Made in Taiwan
SeriesTR7LH SERIES
TypeLEVER HOIST
Capacity Range1 T — 75 T
Design Factor4:1
Country of OriginTAIWAN
HS Code8425.39.0100
Model Lineup — 22 Variants
| Part Number | WLL | Lift Height | Ship Weight | LTL |
|---|---|---|---|---|
| TR7LH-0075-5 | 75 T | 5' | 16 LB | — |
| TR7LH-0075-10 | 75 T | 10' | 20 LB | — |
| TR7LH-0075-15 | 75 T | 15' | 24 LB | — |
| TR7LH-0075-20 | 75 T | 20' | 28 LB | — |
| TR7LH-0100-5 | 1 T | 5' | 18 LB | — |
| TR7LH-0100-10 | 1 T | 10' | 21 LB | — |
| TR7LH-0100-15 | 1 T | 15' | 24 LB | — |
| TR7LH-0100-20 | 1 T | 20' | 25 LB | — |
| TR7LH-0150-5 | 1.5 T | 5' | 24 LB | — |
| TR7LH-0150-10 | 1.5 T | 10' | 28 LB | — |
| TR7LH-0150-15 | 1.5 T | 15' | 32 LB | — |
| TR7LH-0150-20 | 1.5 T | 20' | 36 LB | — |
| TR7LH-0200-10 | 2 T | 10' | 29 LB | — |
| TR7LH-0200-20 | 2 T | 20' | 33 LB | — |
| TR7LH-0300-5 | 3 T | 5' | 40 LB | — |
| TR7LH-0300-10 | 3 T | 10' | 48 LB | — |
| TR7LH-0300-15 | 3 T | 15' | 56 LB | — |
| TR7LH-0300-20 | 3 T | 20' | 62 LB | — |
| TR7LH-0600-5 | 6 T | 5' | 65 LB | — |
| TR7LH-0600-10 | 6 T | 10' | 81 LB | — |
| TR7LH-0600-15 | 6 T | 15' | 95 LB | — |
| TR7LH-0600-20 | 6 T | 20' | 112 LB | — |
⚠
Never exceed the rated capacity — verify WLL and lever travel before use. Inspect hook latches, load chain, lever, and ratchet mechanism before every use. Do not use if the chain is twisted, kinked, or stretched. Ensure anchor and load points are rated. Never use a cheater bar or extension on the lever.
ASME B30.21 · DESIGN FACTOR 4:1 · HS 8425.39.0100Tiger LiftingLever Hoist — Industrial Lever Hoist
