Order Sheet
| SKU | WLL | Lift | Price | Qty | |
|---|---|---|---|---|---|
| CB-0025-10 | 0.25 t | 10' | $380.00 |
|
|
| CB-0025-20 | 0.25 t | 20' | $466.00 |
|
CB-0025-10
$380.00
CB-0025-20
$466.00
Capacity Range0.25 T
Safety Factor4:1
Lift Range10' – 20'
TIGER LIFTING — MINI CHAIN BLOCK · CB SERIES · 0.25 T · TAIWAN · DESIGN FACTOR 4:1

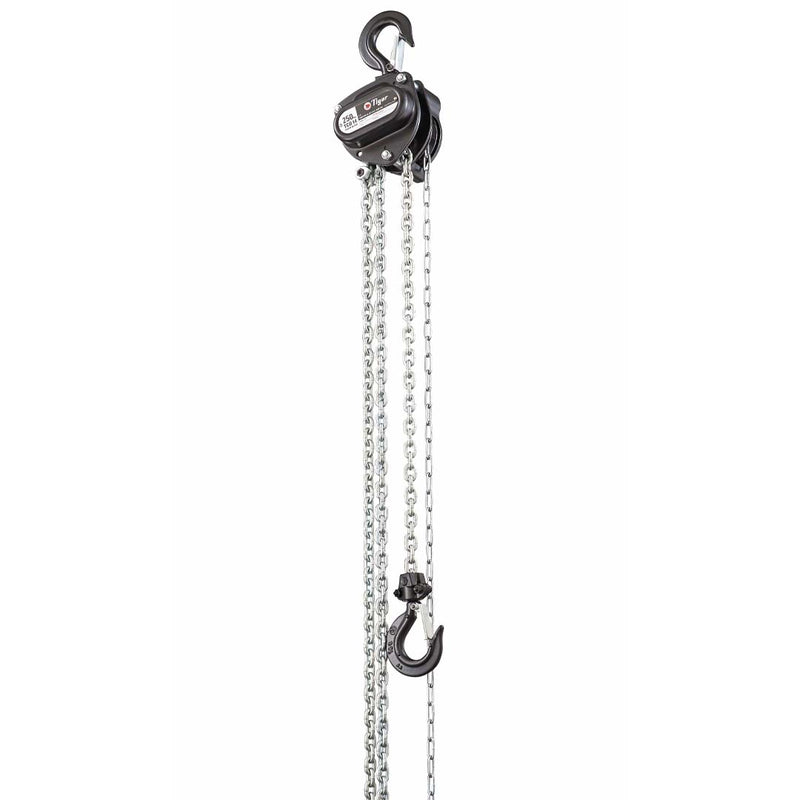

The Tiger Mini Chain Block (CB Series) is a compact mini chain block for light lifting in confined spaces. Taiwan-made — 250 kg capacity in a small, lightweight body for fabrication and maintenance applications.
- Mini series — 250 kg capacity
- Compact body for tight spaces
- Forged steel hooks with safety latches
- Capacity: 0.25 t – 0.25 t
- Design factor: 4:1 · Made in Taiwan
SeriesCB SERIES
TypeHAND CHAIN HOIST
Capacity0.25 T
Design Factor4:1
Country of OriginTAIWAN
HS Code8425.39.0100
Model Lineup — 2 Variants
| Part Number | WLL | Lift Height | Ship Weight | LTL |
|---|---|---|---|---|
| CB-0025-10 | 0.25 T | 10' | 10 LB | — |
| CB-0025-20 | 0.25 T | 20' | 14 LB | — |
⚠
Never exceed the rated capacity — verify WLL and lift height before each use. Inspect hook latches, load chain, hand chain, and hoist body before every lift. Do not use if the chain is twisted, kinked, stretched, or shows wear. Ensure the suspension point is rated for the applied load. Remove from service if the brake does not hold the load or any component shows visible damage.
ASME B30.16 · DESIGN FACTOR 4:1 · HS 8425.39.0100Tiger LiftingHand Chain Hoist — Mini Chain Block
