Order Sheet
| SKU | WLL | Lift | Price | Qty | |
|---|---|---|---|---|---|
| TLH-0025-5 | 0.25 t | 5' | $287.00 |
|
|
| TLH-0025-10 | 0.25 t | 10' | $328.00 |
|
|
| TLH-0025-15 | 0.25 t | 15' | $365.00 |
|
|
| TLH-0025-20 | 0.25 t | 20' | $405.00 |
|
|
| TLH-0050-5 | 0.5 t | 5' | $415.00 |
|
|
| TLH-0050-10 | 0.5 t | 10' | $439.00 |
|
|
| TLH-0050-15 | 0.5 t | 15' | $463.00 |
|
|
| TLH-0050-20 | 0.5 t | 20' | $486.00 |
|
TLH-0025-5
$287.00
TLH-0025-10
$328.00
TLH-0025-15
$365.00
TLH-0025-20
$405.00
TLH-0050-5
$415.00
TLH-0050-10
$439.00
TLH-0050-15
$463.00
TLH-0050-20
$486.00
Capacity Range0.25–0.5 T
Safety Factor4:1
Lift Range5' – 20'

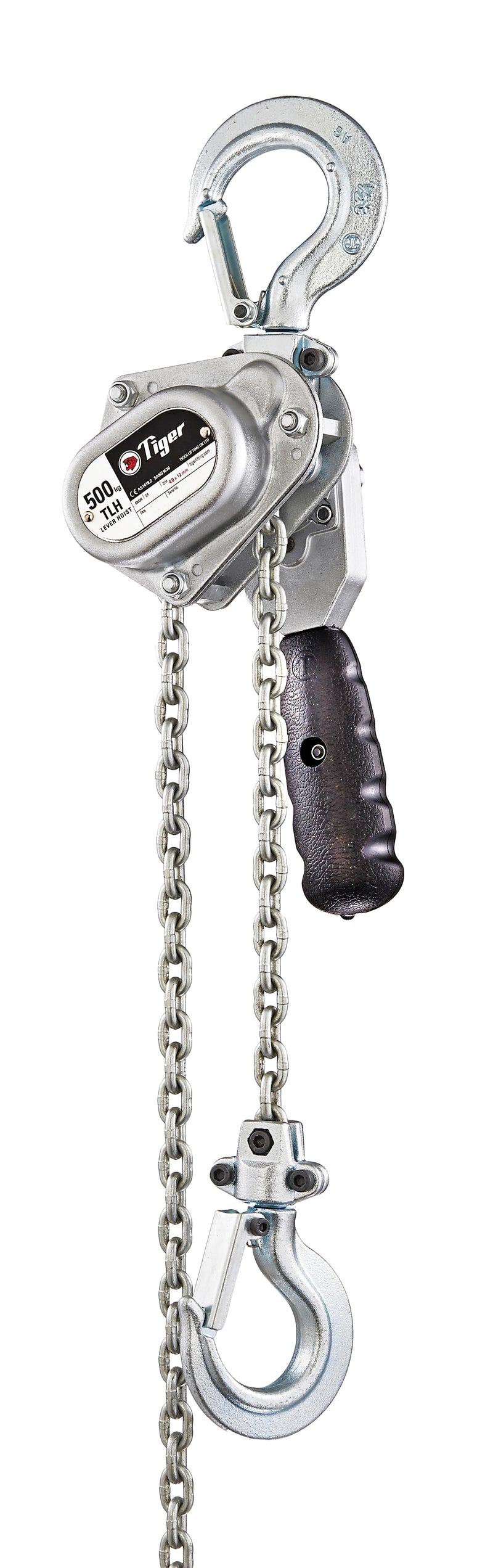

TIGER LIFTING — MINI LEVER HOIST · TLH SERIES · 0.25 T – 0.5 T · TAIWAN · DESIGN FACTOR 4:1
The Tiger Mini Lever Hoist (TLH Series) is a compact mini lever hoist for low-capacity pulling and tensioning. Taiwan-made — ideal for fence work, cable tensioning, and small-load rigging.
- Mini lever hoist — compact body
- Ideal for tensioning and small loads
- Forged steel hooks with safety latches
- Capacity range: 0.25 t – 0.5 t
- Design factor: 4:1 · Made in Taiwan
SeriesTLH SERIES
TypeLEVER HOIST
Capacity Range0.25 T — 0.5 T
Design Factor4:1
Country of OriginTAIWAN
HS Code8425.39.0100
Model Lineup — 8 Variants
| Part Number | WLL | Lift Height | Ship Weight | LTL |
|---|---|---|---|---|
| TLH-0025-5 | 0.25 T | 5' | 6 LB | — |
| TLH-0025-10 | 0.25 T | 10' | 7 LB | — |
| TLH-0025-15 | 0.25 T | 15' | 8 LB | — |
| TLH-0025-20 | 0.25 T | 20' | 9 LB | — |
| TLH-0050-5 | 0.5 T | 5' | 8 LB | — |
| TLH-0050-10 | 0.5 T | 10' | 9 LB | — |
| TLH-0050-15 | 0.5 T | 15' | 10 LB | — |
| TLH-0050-20 | 0.5 T | 20' | 11 LB | — |
⚠
Never exceed the rated capacity — verify WLL and lever travel before use. Inspect hook latches, load chain, lever, and ratchet mechanism before every use. Do not use if the chain is twisted, kinked, or stretched. Ensure anchor and load points are rated. Never use a cheater bar or extension on the lever.
ASME B30.21 · DESIGN FACTOR 4:1 · HS 8425.39.0100Tiger LiftingLever Hoist — Mini Lever Hoist
