Complete the Assembly
This sling

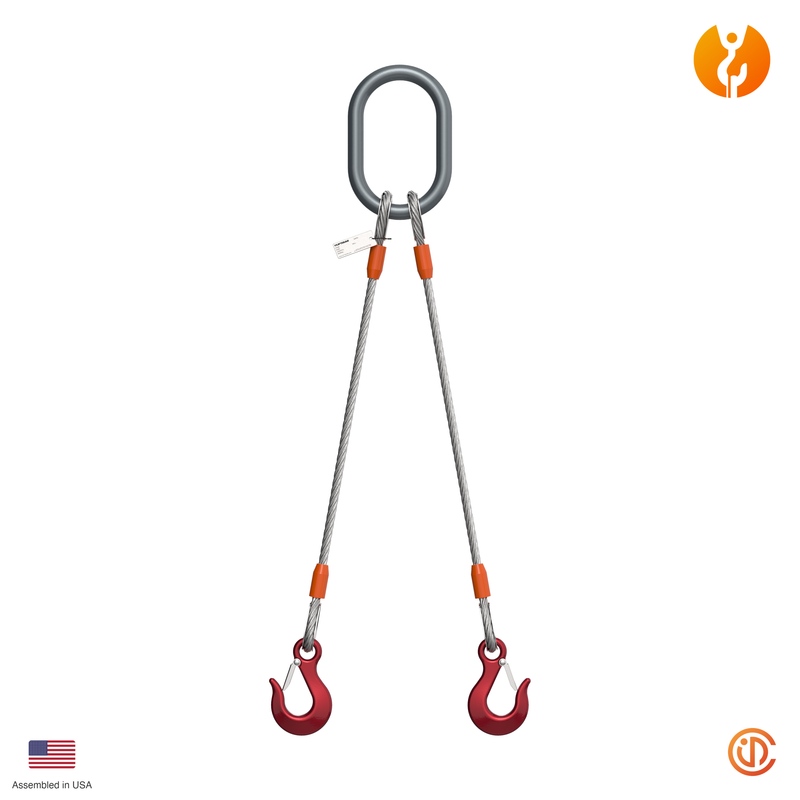

1" Two Leg Eye-Hoist Hook Wire Rope Sling
$526.20
Shackle · one per leg
1" Super Strong Bolt Type Anchor Shackles 10 TON-M854G
$159.48
Assembly rated— for the matched assembly
$845.16
Order Sheet
| SKU | Length | Price | Qty | |
|---|---|---|---|---|
| 410-T022-B05K | 5' | $526.20 | ||
| 410-T022-B06K | 6' | $536.80 | ||
| 410-T022-B07K | 7' | $547.40 | ||
| 410-T022-B08K | 8' | $558.00 | ||
| 410-T022-B10K | 10' | $579.20 | ||
| 410-T022-B12K | 12' | $600.40 | ||
| 410-T022-B15K | 15' | $632.20 | ||
| 410-T022-B20K | 20' | $685.20 |
410-T022-B05K$526.20
410-T022-B06K$536.80
410-T022-B07K$547.40
410-T022-B08K$558.00
410-T022-B10K$579.20
410-T022-B12K$600.40
410-T022-B15K$632.20
410-T022-B20K$685.20
Working Load Limit
17 T @ 60°
Dia
1 in
Legs
2
Fit
Hoist Hook
Two leg wire rope sling with forged alloy steel hoist hooks and mechanically spliced flemish eye terminations. 1” diameter, 6×36WS Class IWRC bright wire rope construction, EIPS grade. Proof tested to 2× rated capacity with serialized tag and test certificate. Galvanized finish available on request.
Reach
5 – 20 FT
Top
OBLONG MASTER LINK
Bottom
HOIST HOOKS (LATCH)
Termination
FLEMISH EYE SPLICE
Core
INDEPENDENT (IWRC)
Finish
BRIGHT (GALV. AVAIL.)
Grade
EIPS
Safety Factor
5 : 1
Proof Test
2× WLL
Weight
~1.85 LB/FT (ROPE)
Working Load Limits — Two Leg
| Dia. | WLL (Tons) | Master Link | Hook WLL | ||
|---|---|---|---|---|---|
| 60° | 45° | 30° | |||
| 1/4” | 1.1 | .91 | .65 | 1/2” | 1 T |
| 5/16” | 1.7 | 1.4 | 1.0 | 1/2” | 1 T |
| 3/8” | 2.5 | 2.0 | 1.4 | 3/4” | 1.5 T |
| 7/16” | 3.4 | 2.7 | 1.9 | 3/4” | 2 T |
| 1/2” | 4.4 | 3.6 | 2.5 | 7/8” | 3 T |
| 9/16” | 5.5 | 4.5 | 3.2 | 7/8” | 5 T |
| 5/8” | 6.8 | 5.5 | 3.9 | 1” | 5 T |
| 3/4” | 9.7 | 7.9 | 5.6 | 1” | 7 T |
| 7/8” | 13 | 11 | 7.6 | 1-1/4” | 11 T |
| 1” | 17 | 14 | 9.8 | 1-1/2” | 11 T |
⚠
Never exceed the rated Working Load Limit. Sling capacity decreases at lower angles — verify the WLL for your specific hitch and angle before each lift. Inspect before every use per ASME B30.9.
Need a custom length, fitting, or configuration?
Contact Sales →
ASME B30.9 │ OSHA 29 CFR 1926.251 │ WSTDA-WRS-1
Liftgear
Assembled in Houston, Texas
Cert lookup → certfid.io/lookup
No documents available for this product.
