Order Sheet
| SKU | WLL | Beam Flange | Price | Qty | |
|---|---|---|---|---|---|
| EBC-1 | 1 t | 3.1" – 9.6" | $151.00 | ||
| EBC-2 | 2 t | 3.1" – 9.6" | $165.00 | ||
| EBC-3 | 3 t | 3.5" – 12.2" | $284.00 | ||
| EBC-5 | 5 t | 3.5" – 12.2" | $343.00 | ||
| EBC-10 | 10 t | 3.5" – 11.8" | $475.00 |
EBC-1$151.00
EBC-2$165.00
EBC-3$284.00
EBC-5$343.00
EBC-10$475.00
Capacity Range1–10 T
Jaw Range3.1" – 12.2"
Mount TypeEYE
ELEPHANT LIFTING — EYE BEAM CLAMP · EBC SERIES · 1 T – 10 T ·

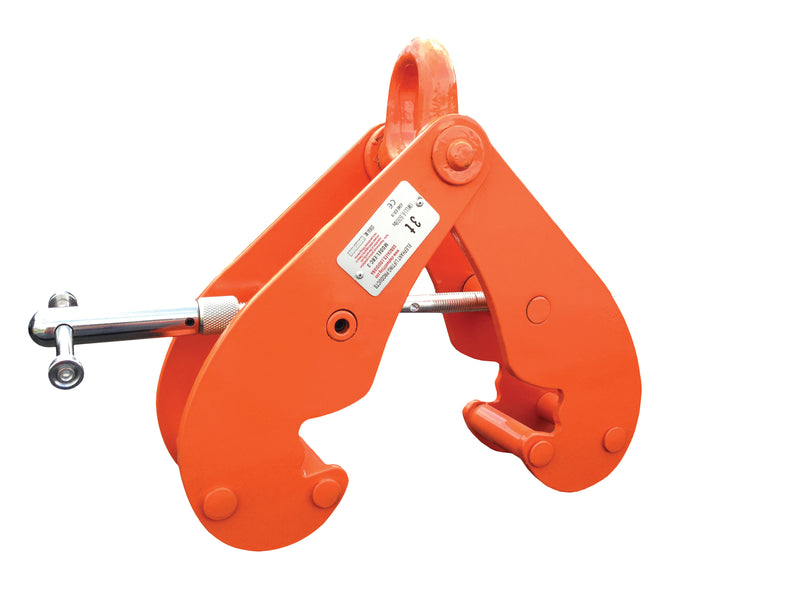

The Elephant Eye Beam Clamp (EBC Series) is a forged steel beam clamp that attaches to the lower flange of an I-beam to create a fixed rigging point for hoists, slings, or rigging hardware. The integrated eye accepts a hook or shackle for quick, tool-free load attachment.
- Forged steel construction with hardened jaw contact surfaces
- Integrated eye for direct hook or shackle attachment
- Capacity range: 1 t – 10 t
- Adjustable jaw fits a wide range of beam flange widths
- Engineered to ASME B30.20 where applicable
SeriesEBC SERIES
TypeBEAM CLAMP
Capacity Range1 T — 10 T
Model Lineup — 5 Variants
| Part Number | WLL | Beam Flange | Ship Weight | LTL |
|---|---|---|---|---|
| EBC-1 | 1 T | 3.1" – 9.6" | 12 LB | — |
| EBC-2 | 2 T | 3.1" – 9.6" | 13 LB | — |
| EBC-3 | 3 T | 3.5" – 12.2" | 26 LB | — |
| EBC-5 | 5 T | 3.5" – 12.2" | 30 LB | — |
| EBC-10 | 10 T | 3.5" – 11.8" | 45 LB | — |
⚠
Verify beam flange thickness and width match the clamp's rated range before loading. Never exceed the rated WLL. Inspect jaw faces, locking screw, and eye/shackle for wear, deformation, or cracks before every use. Remove from service if jaw teeth are worn, the locking mechanism is damaged, or the eye shows deformation.
ASME B30.20 · HS 8431.10.0090Elephant LiftingBeam Clamp — Eye Beam Clamp
