Order Sheet
| SKU | WLL | Price | Qty | |
|---|---|---|---|---|
| G-1 | 1 t | $801.00 |
|
|
| G-2 | 2 t | $1,132.00 |
|
|
| G-3.1 | 3.1 t | $1,505.00 |
|
|
| G-5 | 5 t | $2,095.00 |
|
|
| G-10 | 10 t | $4,882.00 |
|
|
| G-20 | 20 t | $11,479.00 |
|
G-1
$801.00
G-2
$1,132.00
G-3.1
$1,505.00
G-5
$2,095.00
G-10
$4,882.00
G-20
$11,479.00
Capacity Range1–20 T
Beam Range2.3"–7.08"
Drive TypeGEARED
ELEPHANT LIFTING — GEARED TYPE TROLLEY · G SERIES · 1 T – 20 T · JAPAN

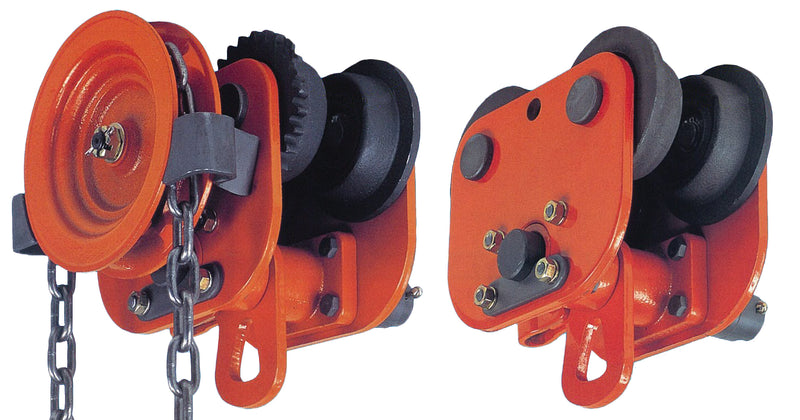

The Elephant Geared Type Trolley (G Series) is a geared trolley for use with chain blocks and lever hoists on I-beams. The geared drive allows precise positioning of the load along the beam using a hand chain, with anti-drop plates for safety.
- Geared drive — precise load positioning via hand chain
- Anti-drop plates prevent derailment
- Fits a wide range of standard I-beam flanges
- Capacity range: 1 t – 20 t
- Standard 10' hand chain drop · Made in Japan
SeriesG SERIES
TypeMANUAL TROLLEY
Capacity Range1 T — 20 T
ShippingLTL ON LARGER MODELS
Country of OriginJAPAN
HS Code8431.10.0090
Model Lineup — 6 Variants
| Part Number | WLL | Beam Flange | Ship Weight | LTL |
|---|---|---|---|---|
| G-1 | 1 T | 2.3" – 5.11" | 42 LB | — |
| G-2 | 2 T | 2.7" – 6.1" | 65 LB | — |
| G-3.1 | 3.1 T | 3.5" – 6.2" | 78 LB | — |
| G-5 | 5 T | 3.54" – 7.08" | 170 LB | LTL |
| G-10 | 10 T | — | 320 LB | LTL |
| G-20 | 20 T | — | 790 LB | LTL |
⚠
Verify beam flange width and thickness are within the trolley's rated range before loading. Never exceed the rated WLL. Inspect side plates, axles, wheels, and anti-drop plates before every use. Ensure beam ends have proper stops to prevent roll-off. Remove from service if wheels are worn, axles show deformation, or anti-drop hardware is damaged. Larger capacities ship LTL freight — confirm delivery address accepts LTL before ordering.
ASME B30.11 · HS 8431.10.0090Elephant LiftingManual Trolley — Geared Type Trolley
