Order Sheet
| SKU | WLL | Part Number | Price | Qty | |
|---|---|---|---|---|---|
| GS-2 | 2 t | GS-2 | $360.00 |
|
|
| GS-3 | 3 t | GS-3 | $404.00 |
|
|
| GS-5 | 5 t | GS-5 | $721.00 |
|
|
| GS-5-WB | 5 t | GS-5-WB | $2,297.00 |
|
|
| GS-10 | 10 t | GS-10 | $2,370.00 |
|
|
| GS-20 | 20 t | GS-20 | $4,130.00 |
|
|
| GS-32 | 32 t | GS-32 | $6,604.00 |
|
GS-2
$360.00
GS-3
$404.00
GS-5
$721.00
GS-5-WB
$2,297.00
GS-10
$2,370.00
GS-20
$4,130.00
GS-32
$6,604.00
Capacity Range2–32 T
Jaw Range2.95" – 25.98"
Mount TypeCLAMP
ELEPHANT LIFTING — GRIPPA BEAM CLAMP · GS SERIES · 2 T – 32 T · SOUTH AFRICA

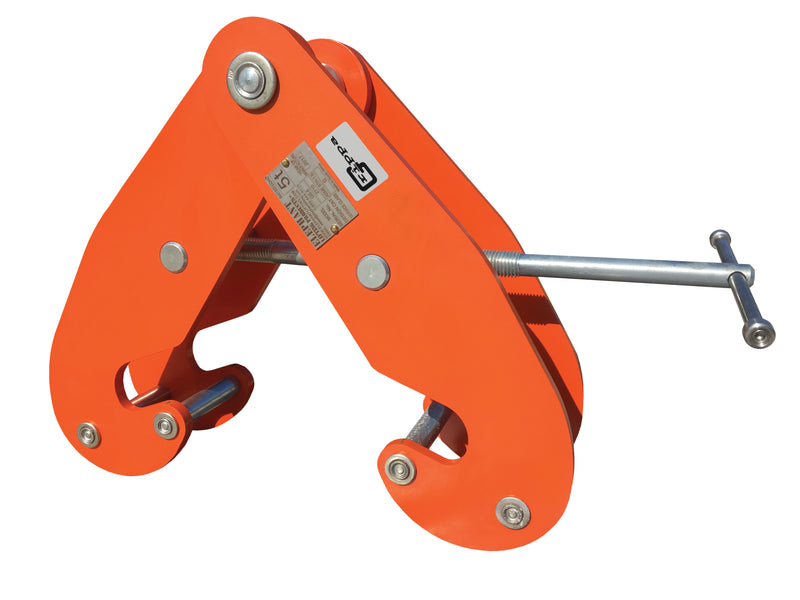

The Elephant Grippa Beam Clamp (GS Series) is a heavy-duty GRIPPA beam clamp manufactured in South Africa. Precision machined jaws and a locking screw lock onto the beam flange for a secure, slip-resistant rigging point.
- Heavy-duty GRIPPA series — precision machined jaws
- Locking screw prevents slip during rigging and lifting
- Capacity range: 2 t – 32 t
- Wide beam flange compatibility
- Made in South Africa
SeriesGS SERIES
TypeBEAM CLAMP
Capacity Range2 T — 32 T
ShippingLTL ON LARGER MODELS
Country of OriginSOUTH AFRICA
HS Code8431.10.0090
Model Lineup — 7 Variants
| Part Number | WLL | Beam Flange | Ship Weight | LTL |
|---|---|---|---|---|
| GS-2 | 2 T | 2.95" – 9.84" | 11 LB | — |
| GS-3 | 3 T | 3.35" – 11.81" | 19 LB | — |
| GS-5 | 5 T | 4.72" – 16.93" | 42 LB | — |
| GS-5-WB | 5 T | 7.87" – 25.98" | 58 LB | — |
| GS-10 | 10 T | 7.87" – 17.72" | 84 LB | — |
| GS-20 | 20 T | 7.87" – 18.90" | 170 LB | LTL |
| GS-32 | 32 T | — | 404 LB | LTL |
⚠
Verify beam flange thickness and width match the clamp's rated range before loading. Never exceed the rated WLL. Inspect jaw faces, locking screw, and eye/shackle for wear, deformation, or cracks before every use. Remove from service if jaw teeth are worn, the locking mechanism is damaged, or the eye shows deformation. Larger capacities ship LTL freight — confirm delivery address accepts LTL before ordering.
ASME B30.20 · HS 8431.10.0090Elephant LiftingBeam Clamp — Grippa Beam Clamp
