Elephant Lifting

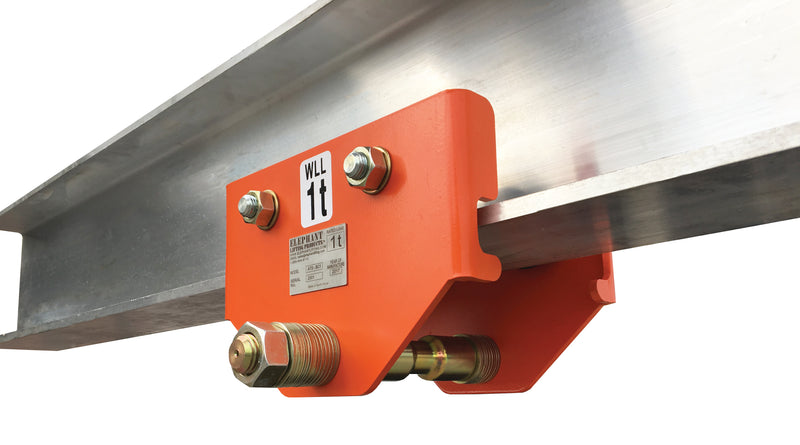

Elephant Grippa Push Type Trolley - ATS-BC Series
SKU: ATS-BC050
$533.00
View Details
Order Sheet
| SKU | WLL | Price | Qty | |
|---|---|---|---|---|
| ATS-BC050 | 0.5 t | $533.00 |
|
|
| ATS-BC1 | 1 t | $552.00 |
|
|
| ATS-BC2 | 2 t | $792.00 |
|
|
| ATS-BC3 | 3 t | $1,100.00 |
|
|
| ATS-BC5 | 5 t | $2,056.00 |
|
|
| ATS-BC-10 | 10 t | $4,045.00 |
|
ATS-BC050
$533.00
ATS-BC1
$552.00
ATS-BC2
$792.00
ATS-BC3
$1,100.00
ATS-BC5
$2,056.00
ATS-BC-10
$4,045.00
Capacity Range0.5–10 T
Beam Range—
Drive TypePUSH
ELEPHANT LIFTING — GRIPPA PUSH TYPE TROLLEY · ATS-BC SERIES · 0.5 T – 10 T · SOUTH AFRICA
The Elephant Grippa Push Type Trolley (ATS-BC Series) is a heavy-duty GRIPPA push trolley manufactured in South Africa. Robust machined frame and precision bearings for smooth travel on I-beams in demanding rigging environments.
- Heavy-duty GRIPPA series — precision machined frame
- Push-type — manual load positioning
- Capacity range: 0.5 t – 10 t
- Fits a wide range of standard I-beam flanges
- Made in South Africa
SeriesATS-BC SERIES
TypeMANUAL TROLLEY
Capacity Range0.5 T — 10 T
ShippingLTL ON LARGER MODELS
Country of OriginSOUTH AFRICA
HS Code8431.10.0090
Model Lineup — 6 Variants
| Part Number | WLL | Beam Flange | Ship Weight | LTL |
|---|---|---|---|---|
| ATS-BC050 | 0.5 T | — | 13 LB | — |
| ATS-BC1 | 1 T | — | 22 LB | — |
| ATS-BC2 | 2 T | — | 52 LB | — |
| ATS-BC3 | 3 T | — | 64 LB | — |
| ATS-BC5 | 5 T | — | 148 LB | LTL |
| ATS-BC-10 | 10 T | — | 272 LB | LTL |
⚠
Verify beam flange width and thickness are within the trolley's rated range before loading. Never exceed the rated WLL. Inspect side plates, axles, wheels, and anti-drop plates before every use. Ensure beam ends have proper stops to prevent roll-off. Remove from service if wheels are worn, axles show deformation, or anti-drop hardware is damaged. Larger capacities ship LTL freight — confirm delivery address accepts LTL before ordering.
ASME B30.11 · HS 8431.10.0090Elephant LiftingManual Trolley — Grippa Push Type Trolley
