Order Sheet
| SKU | WLL | Part Number | Price | Qty | |
|---|---|---|---|---|---|
| JBC-3A | 3 t | JBC-3A | $730.00 |
|
|
| JBC-5A | 5 t | JBC-5A | $1,050.00 |
|
|
| JBC-5B | 5 t | JBC-5B | $979.00 |
|
|
| JBC-6 | 6 t | JBC-6 | $1,350.00 |
|
|
| JBC-10 | 10 t | JBC-10 | $1,733.00 |
|
|
| JBC-16A | 16 t | JBC-16A | $2,950.00 |
|
|
| JBC-16B | 16 t | JBC-16B | $2,402.00 |
|
|
| JBC-20 | 20 t | JBC-20 | $4,348.00 |
|
|
| JBC-32 | 32 t | JBC-32 | $8,649.00 |
|
JBC-3A
$730.00
JBC-5A
$1,050.00
JBC-5B
$979.00
JBC-6
$1,350.00
JBC-10
$1,733.00
JBC-16A
$2,950.00
JBC-16B
$2,402.00
JBC-20
$4,348.00
JBC-32
$8,649.00
Capacity Range3–32 T
Jaw Range3.0" – 18.0"
Mount TypeLOCKING
ELEPHANT LIFTING — JUMBO BEAM CLAMP · JBC SERIES · 3 T – 32 T ·

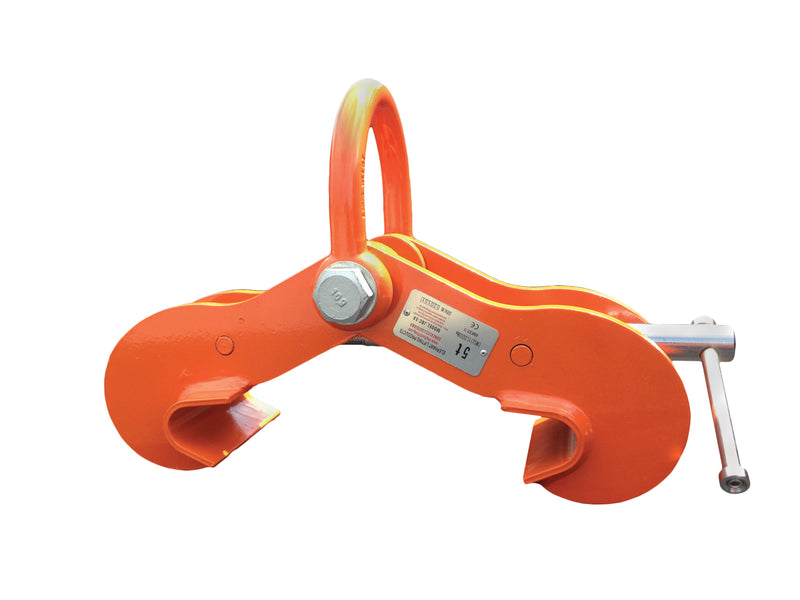

The Elephant Jumbo Beam Clamp (JBC Series) is a heavy-duty beam clamp built for high-capacity rigging points on wide-flange beams. Forged and machined steel body with a wide jaw opening range and captive locking screw secure the clamp to the beam before loading.
- Heavy-duty forged steel body — high-capacity rigging points
- Captive locking screw keeps the clamp fixed on the beam
- Capacity range: 3 t – 32 t
- Wide jaw opening for large structural beams
- Engineered to ASME B30.20 where applicable
SeriesJBC SERIES
TypeBEAM CLAMP
Capacity Range3 T — 32 T
ShippingLTL ON LARGER MODELS
Model Lineup — 9 Variants
| Part Number | WLL | Beam Flange | Ship Weight | LTL |
|---|---|---|---|---|
| JBC-3A | 3 T | 3" – 7.5" | 19 LB | — |
| JBC-5A | 5 T | 5.9" – 12" | 37 LB | — |
| JBC-5B | 5 T | 3" – 7.5" | 32 LB | — |
| JBC-6 | 6 T | 8" – 18" | 56 LB | — |
| JBC-10 | 10 T | 8" – 18" | 73 LB | — |
| JBC-16A | 16 T | — | 180 LB | LTL |
| JBC-16B | 16 T | — | 159 LB | LTL |
| JBC-20 | 20 T | — | 300 LB | LTL |
| JBC-32 | 32 T | — | 691 LB | LTL |
⚠
Verify beam flange thickness and width match the clamp's rated range before loading. Never exceed the rated WLL. Inspect jaw faces, locking screw, and eye/shackle for wear, deformation, or cracks before every use. Remove from service if jaw teeth are worn, the locking mechanism is damaged, or the eye shows deformation. Larger capacities ship LTL freight — confirm delivery address accepts LTL before ordering.
ASME B30.20 · HS 8431.10.0090Elephant LiftingBeam Clamp — Jumbo Beam Clamp
