Order Sheet
| SKU | WLL | Price | Qty | |
|---|---|---|---|---|
| P-0.5 | 0.5 t | $488.00 | ||
| P-1 | 1 t | $506.00 | ||
| P-1.6 | 1.6 t | $673.00 | ||
| P-2 | 2 t | $673.00 | ||
| P-3.1 | 3.1 t | $1,014.00 | ||
| P-5 | 5 t | $1,581.00 | ||
| P-10 | 10 t | $4,020.00 |
P-0.5$488.00
P-1$506.00
P-1.6$673.00
P-2$673.00
P-3.1$1,014.00
P-5$1,581.00
P-10$4,020.00
Capacity Range0.5–10 T
Beam Range2.3"–6.2"
Drive TypePUSH

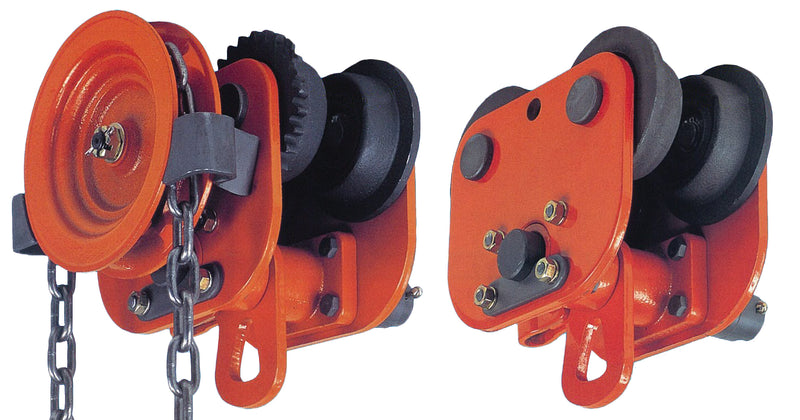

ELEPHANT LIFTING — PUSH TYPE TROLLEY · P SERIES · 0.5 T – 10 T · JAPAN
The Elephant Push Type Trolley (P Series) is a push-type trolley for light-duty loads that can be repositioned by hand. Anti-drop plates retain the trolley on the beam during use and travel.
- Push-type — manually reposition the load by hand
- Anti-drop plates retain trolley on beam
- Capacity range: 0.5 t – 10 t
- Fits a range of standard I-beam flanges
- Made in Japan
SeriesP SERIES
TypeMANUAL TROLLEY
Capacity Range0.5 T — 10 T
ShippingLTL ON LARGER MODELS
Country of OriginJAPAN
HS Code8431.10.0090
Model Lineup — 7 Variants
| Part Number | WLL | Beam Flange | Ship Weight | LTL |
|---|---|---|---|---|
| P-0.5 | 0.5 T | 2.3" – 5.11" | 21 LB | — |
| P-1 | 1 T | 2.3" – 5.1" | 27 LB | — |
| P-1.6 | 1.6 T | 2.7" – 6.1" | 49 LB | — |
| P-2 | 2 T | 2.7" – 6.1" | 49 LB | — |
| P-3.1 | 3.1 T | 3.5" – 6.2" | 67 LB | — |
| P-5 | 5 T | — | 117 LB | — |
| P-10 | 10 T | — | 280 LB | LTL |
⚠
Verify beam flange width and thickness are within the trolley's rated range before loading. Never exceed the rated WLL. Inspect side plates, axles, wheels, and anti-drop plates before every use. Ensure beam ends have proper stops to prevent roll-off. Remove from service if wheels are worn, axles show deformation, or anti-drop hardware is damaged. Larger capacities ship LTL freight — confirm delivery address accepts LTL before ordering.
ASME B30.11 · HS 8431.10.0090Elephant LiftingManual Trolley — Push Type Trolley
