Order Sheet
| SKU | WLL | Price | Qty | |
|---|---|---|---|---|
| QBT-1 | 1 t | $385.00 |
|
|
| QBT-3 | 3 t | $706.00 |
|
|
| QBT-6 | 6 t | $1,104.00 |
|
|
| QBT-10 | 10 t | $2,151.00 |
|

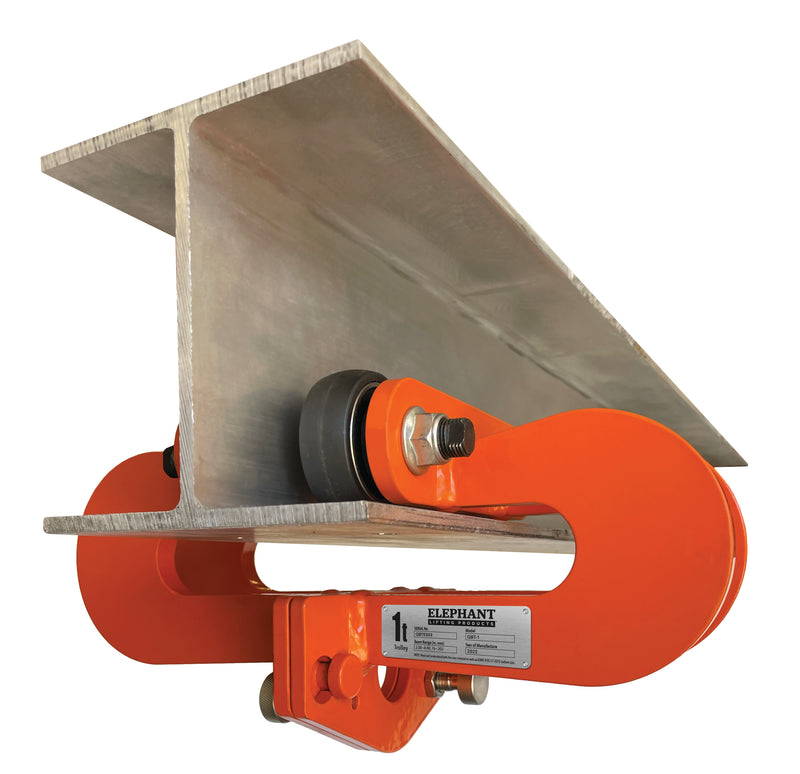

The Elephant Quick Beam Push Type Trolley (QBT Series) is a quick-install push trolley with a stainless steel install plunger and double-sealed bearings. Install without tools — spring-loaded plungers allow the side plates to open and clamp onto the beam in seconds.
- Quick-install design — no tools required
- Stainless steel install plunger · double-sealed bearings
- Capacity range: 1 t – 10 t
- Meets or exceeds ASME B30.11 where applicable
- Made in China
Model Lineup — 4 Variants
| Part Number | WLL | Beam Flange | Ship Weight | LTL |
|---|---|---|---|---|
| QBT-1 | 1 T | — | 24 LB | — |
| QBT-3 | 3 T | — | 40 LB | — |
| QBT-6 | 6 T | — | 78 LB | — |
| QBT-10 | 10 T | — | 185 LB | LTL |
Verify beam flange width and thickness are within the trolley's rated range before loading. Never exceed the rated WLL. Inspect side plates, axles, wheels, and anti-drop plates before every use. Ensure beam ends have proper stops to prevent roll-off. Remove from service if wheels are worn, axles show deformation, or anti-drop hardware is damaged. Larger capacities ship LTL freight — confirm delivery address accepts LTL before ordering.
