Order Sheet
| SKU | WLL | Beam Flange | Price | Qty | |
|---|---|---|---|---|---|
| WF-0.5 | 0.5 t | 0.003" – 1.10" | $675.00 |
|
|
| WF-1 | 1 t | 0.003" – 1.57" | $796.00 |
|
|
| WF-2 | 2 t | 003" – 1.77" | $890.00 |
|
|
| WF-3 | 3 t | 24" – 1.93" | $1,153.00 |
|
|
| WF-5 | 5 t | 0.35" – 2.08" | $1,312.00 |
|
WF-0.5
$675.00
WF-1
$796.00
WF-2
$890.00
WF-3
$1,153.00
WF-5
$1,312.00
Capacity Range0.5–5 T
Jaw Range0.003" – 2.08"
Mount TypeSCREW

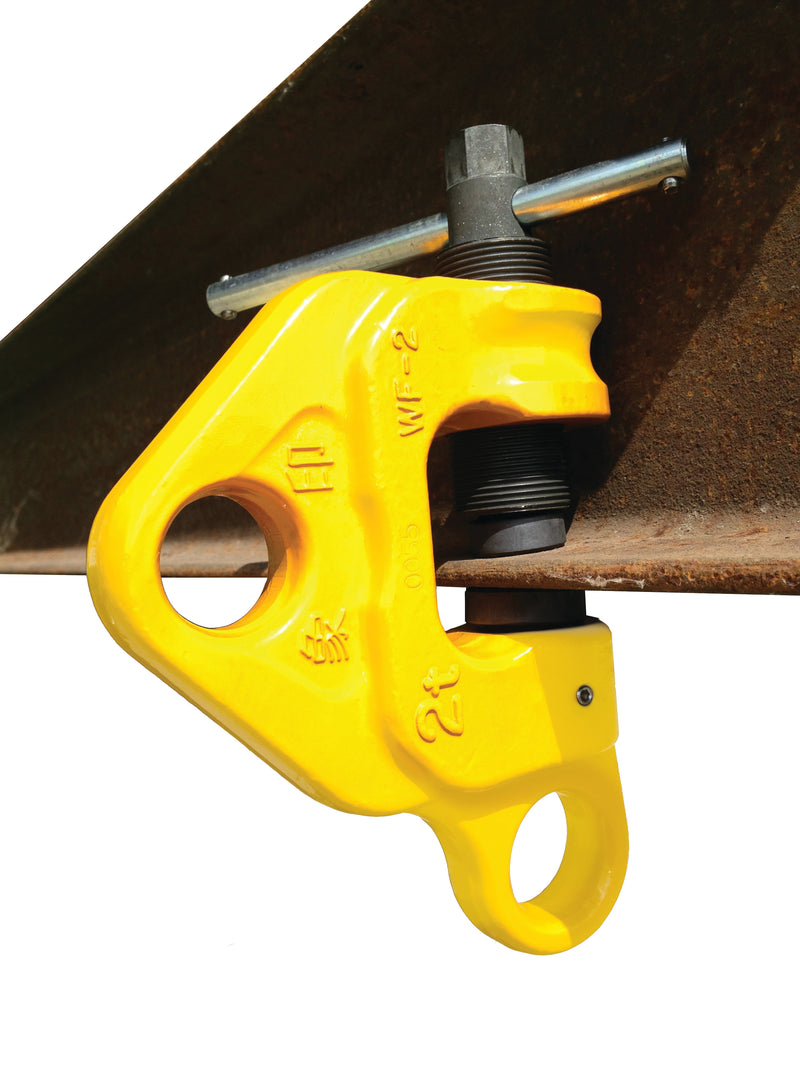

ELEPHANT LIFTING — SCREW TYPE CLAMP · WF SERIES · 0.5 T – 5 T · JAPAN
The Elephant Screw Type Clamp (WF Series) is a compact screw-type clamp with a tightening screw that secures the clamp to steel plate, bar, or flange. Ideal for fabrication, welding, and light rigging applications where a temporary fixed point is needed.
- Compact Japan-made screw-type clamp
- Tightening screw secures to plate, bar, or flange
- Capacity range: 0.5 t – 5 t
- Small jaw opening for thin materials
- Ideal for fabrication, welding, and light rigging
SeriesWF SERIES
TypeBEAM CLAMP
Capacity Range0.5 T — 5 T
Country of OriginJAPAN
HS Code8431.10.0090
Model Lineup — 5 Variants
| Part Number | WLL | Beam Flange | Ship Weight | LTL |
|---|---|---|---|---|
| WF-0.5 | 0.5 T | 0.003" – 1.10" | 4 LB | — |
| WF-1 | 1 T | 0.003" – 1.57" | 7 LB | — |
| WF-2 | 2 T | 003" – 1.77" | 11 LB | — |
| WF-3 | 3 T | 24" – 1.93" | 17 LB | — |
| WF-5 | 5 T | 0.35" – 2.08" | 23 LB | — |
⚠
Verify beam flange thickness and width match the clamp's rated range before loading. Never exceed the rated WLL. Inspect jaw faces, locking screw, and eye/shackle for wear, deformation, or cracks before every use. Remove from service if jaw teeth are worn, the locking mechanism is damaged, or the eye shows deformation.
ASME B30.20 · HS 8431.10.0090Elephant LiftingBeam Clamp — Screw Type Clamp
