Order Sheet
| SKU | WLL | Price | Qty | |
|---|---|---|---|---|
| BKOFFST0608 | 8 Ton - 6" Sheave | $399.49 |
|
|
| BKOFFST0808 | 8 Ton - 8" Sheave | $1,177.88 |
|
|
| BKOFFST1008 | 8 Ton - 10" Sheave | $1,581.29 |
|
BKOFFST0608
$399.49
BKOFFST0808
$1,177.88
BKOFFST1008
$1,581.29
Wire Rope3/4 – 7/8"
WLL Range8 T – 8 T
Safety Factor4×WLL

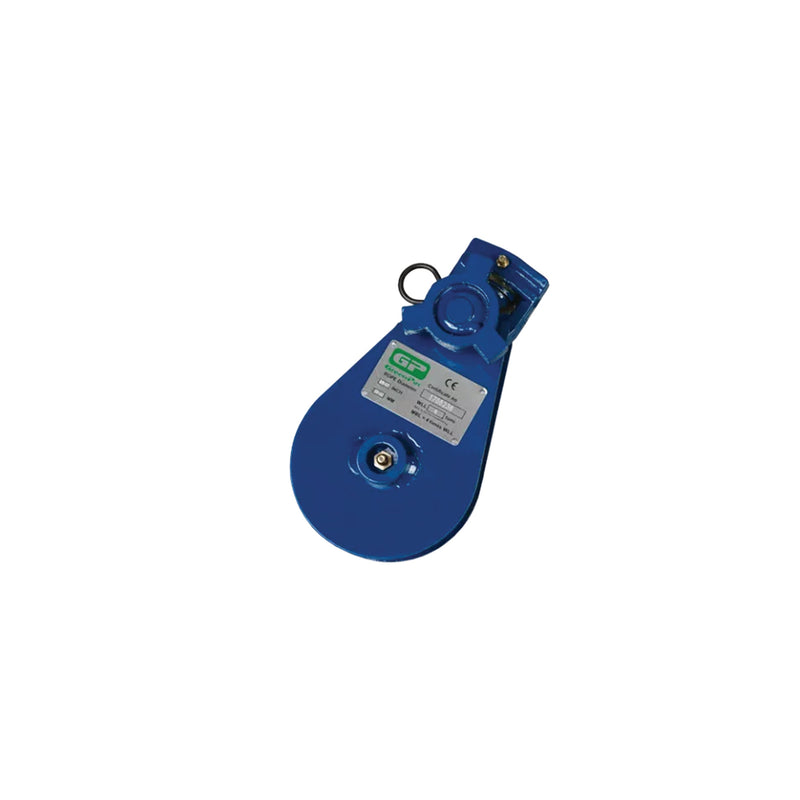

The Green Pin® Snatch Block T (Type 601T) fitted for 3/4 – 7/8" wire rope. Carbon steel construction with conical roller bearings for efficient wire rope travel. Side plates open for mid-line rope insertion. WLL is marked on the headfitting. Select your required WLL from the variant options above.
- Carbon steel, conical roller bearings
- Side plates open for mid-line rope entry
- Safety factor: MBL = 4 × WLL
- Painted finish · Certified: 2.1, 2.2, MTC, CE IIA
Wire Rope Diameter3/4 – 7/8"
Type601T — SNATCH BLOCK
MaterialCARBON STEEL
BearingsCONICAL ROLLER BEARINGS
Headfitting—
Safety FactorMBL = 4 × WLL
FinishPAINTED
Certification2.1 · 2.2 · MTC · CE IIA
WLL LocationMARKED ON HEADFITTING
Available WLL Options
| WLL | Sheave OD |
|---|---|
| 8 t | 6" |
| 8 t | 8" |
| 8 t | 10" |
⚠
WLL is marked on the headfitting — verify before every use. Never exceed the rated WLL. Inspect sheave, side plates, headfitting, and wire rope before each use. Remove from service if any component shows deformation or wear.
TYPE 601T · 2.1 · 2.2 · MTC · CE IIA · MBL = 4 × WLLGreen Pin®Van Beest — Snatch Block T
