Image may not match exactly. Refer to the specs.
Schematic

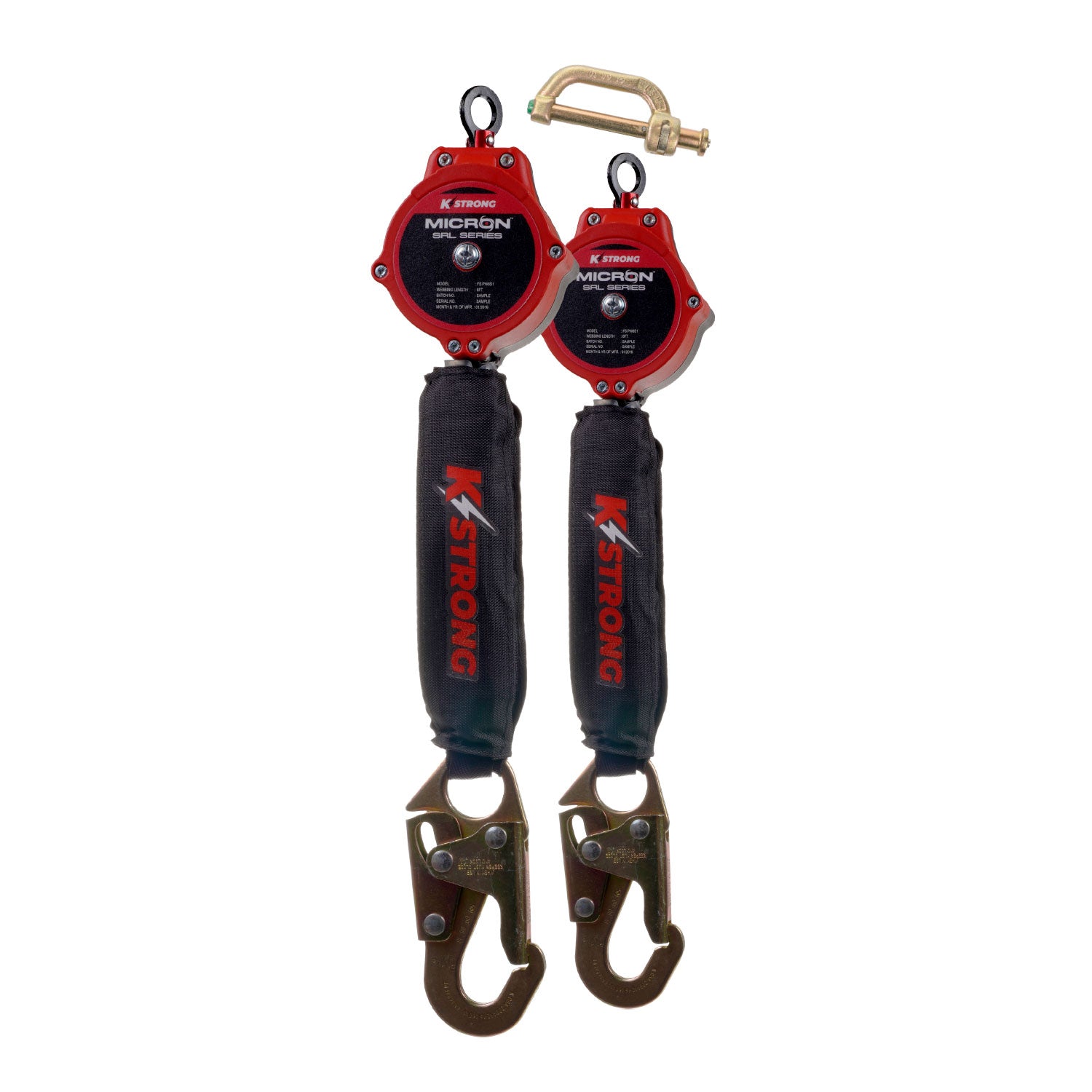

KStrong Dual 6 ft Micron SRL Assembly with Snap Hooks (ANSI), Harness Connector Included – UFS350002D
SKU UFS350002D
$429.25
Use it with
Green Pin 1" Bolt Type Shackle – 18,730 lb (8.5 tonnes) WLL – GPGHMB25$82.68
Liftgear LERS5 Endless Round Sling, Red13,200 lb WLL$24.72
Green Pin P-6703A Swivel Hoist Hook with Safety Latch – 11,900 lb (5.4 tonnes) WLL – HKK03A054$145.62
CM Super Strong 1/2" Screw Pin Anchor Shackle – 6,000 lb WLL – M650G$24.10
Details
KStrong® Dual 6 ft. Micron™ Lightweight SRL assembly with one (1) snap hook at each anchor end (ANSI). Includes one (1) connector (UFC409151) to attach to harness.
PHYSICAL PARAMETERS:
• Lightest available SRL in its range/class
• Robust & durable plastic casing
• Dyneema Webbing with Energy absorber
• Steel snap hook at attachment end
LENGTH:
6 ft.
WEBBING:
Material: Dyneema Webbing 13/16” (21mm)
Min. Breaking strength: 4500 lbs.
WEIGHT:
7.10 lbs. ± 0.22 lbs. (3221 gm ± 100 gm)
USER CAPACITY:
OSHA Working Load Capacity: 420 lbs.
ANSI Working Load Capacity: 310 lbs.
RELEVANT STANDARDS:
Meets or Exceeds ANSI Z359.14-2021 Class 1
*The Micron™ series of SRL’s have not only been tested to ANSI Z359.14-2021 Class 1 but also to a Fall Factor of 2. This means that when a preferred overhead anchor point is not present, a worker may connect to a suitable anchor up to 5 ft. below the dorsal D-ring height of their full body harness.
