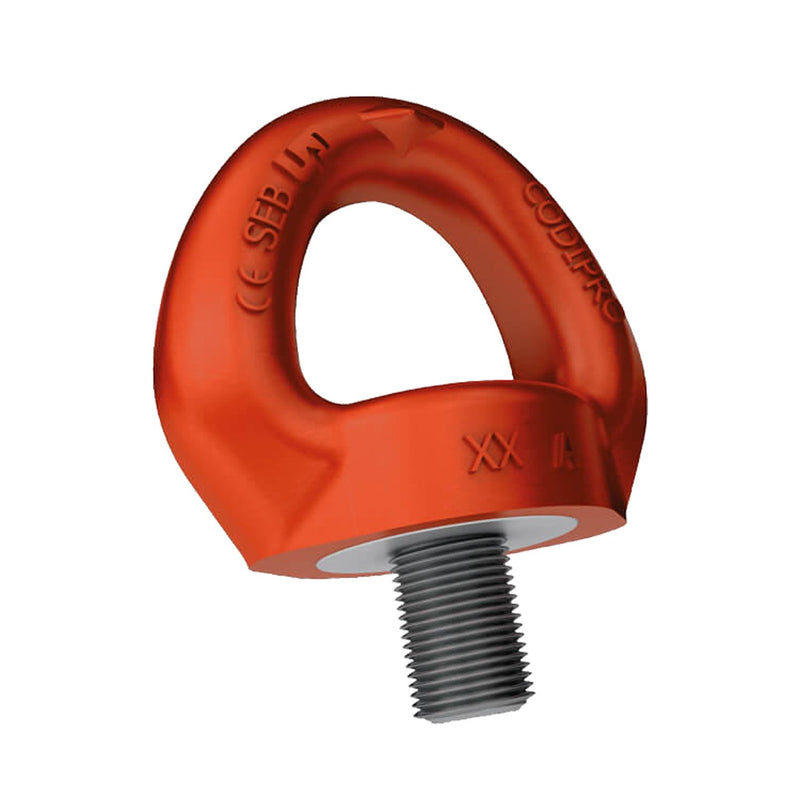

Codipro SEB 5/8"-11 UNC Swivel Eye Bolt – 4,000 lb WLL – SEB U 058 UP
SKU SEB U 058 UP
$152.03
Returns need our approval first. Return policy
Use it with
CM Super Strong 7/16" Screw Pin Anchor Shackle – 4,000 lb WLL – M649G$20.15
Liftgear LERS2 Endless Round Sling, GreenWLL 5,300 lb$13.90
Green Pin P-6703A Swivel Hoist Hook with Safety Latch – 5,510 lb (2.5 tonnes) WLL – HKK03A025$64.42
Green Pin 1/2" Bolt Type Shackle – 4,400 lb (2 tonnes) WLL – GPGHMB13$27.72
Details
The Codipro SEB is a single swivel lifting ring equipped with two pins that always guide it perfectly in the direction of the sling — eliminating side loading regardless of pull angle. Built from GRADUP steel specially designed for lifting, the SEB handles rotating loads safely and is available in male (SEB) or female (FE.SEB) versions. Each unit ships with a user manual, certificate, and Coditracer traceability enabled.
- 360° swivel — dual pin guidance always aligns with sling direction
- GRADUP steel — engineered specifically for lifting applications
- Handles rotating and off-angle loads safely
- Available in male (SEB) and female (FE.SEB) versions
- Coditracer enabled for asset traceability
- Supplied with user manual and individual certificate
- ISO 9001, ISO 14001 & ISO 27001 certified
- CE marked
Working Load Limits by Thread Size
| Reference | Thread | WLL 5:1 (lb) | WLL 4:1 (lb) | Weight (lb) |
|---|---|---|---|---|
| SEB U 038 UP | UNC 3/8"-16 | 1,200 | 1,500 | 0.53 |
| SEB U 050 UP | UNC 1/2"-13 | 1,800 | 1,950 | 0.53 |
| SEB U 058 UP | UNC 5/8"-11 | 3,200 | 4,000 | 1.76 |
| SEB U 075 UP | UNC 3/4"-10 | 4,750 | 5,900 | 1.76 |
| SEB U 100 UP | UNC 1"-8 | 7,500 | 9,300 | 5.73 |
| SEB U 125 UP | UNC 1-1/4"-7 | 12,200 | 13,800 | 6.17 |
| SEB U 150 UP | UNC 1-1/2"-6 | 20,000 | 25,000 | 15.43 |
| SEB U 200 UP | UNC 2"-4.5 | 33,000 | 35,200 | 16.09 |
Never exceed the rated Working Load Limit. Always torque to the specified value before use. Always follow applicable domestic safety regulations. Inspect before every use — remove from service if deformed, cracked, or damaged.
