Codipro

1"-8 CODIPRO SWIVEL EYE BOLT UNC WLL 9300 LBS - SEB U 100 UP

SKU: SEB U 100 UP
$276.83
View Details
Qty:
Your rigging equipment is now smart, with Certfid.

Liftgear's Rigging Hardware ship with Certfid. Tap the tag with a phone and its compliance and history is instantly available.

Working Load Limit 9.3K LB
Swivel 360°
Thread UNC

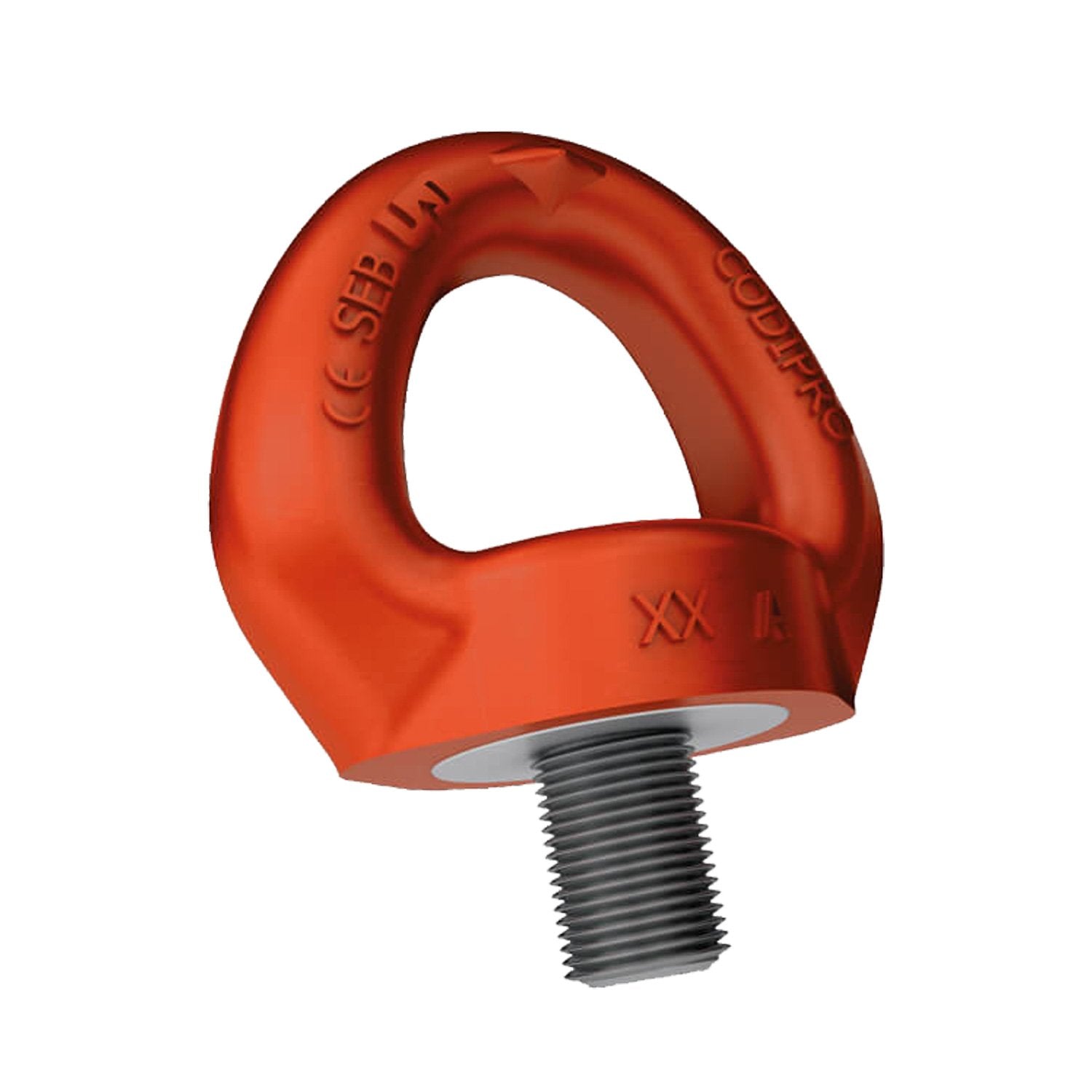

CODIPRO SEB — SWIVEL EYE BOLT / GRADUP STEEL / UNC THREAD

The Codipro SEB is a single swivel lifting ring equipped with two pins that always guide it perfectly in the direction of the sling — eliminating side loading regardless of pull angle. Built from GRADUP steel specially designed for lifting, the SEB handles rotating loads safely and is available in male (SEB) or female (FE.SEB) versions. Each unit ships with a user manual, certificate, and Coditracer traceability enabled.

  • 360° swivel — dual pin guidance always aligns with sling direction
  • GRADUP steel — engineered specifically for lifting applications
  • Handles rotating and off-angle loads safely
  • Available in male (SEB) and female (FE.SEB) versions
  • Coditracer enabled for asset traceability
  • Supplied with user manual and individual certificate
  • ISO 9001, ISO 14001 & ISO 27001 certified
  • CE marked



TypeSWIVEL EYE BOLT — SINGLE SWIVEL RING
MaterialGRADUP STEEL — ZINC PLATED
ThreadUNC (3/8" TO 2")
Swivel Range360°
Safety Factor5 : 1 (4:1 ALSO RATED — SEE TABLE)
TraceabilityCODITRACER ENABLED / INDIVIDUAL CERT
CertificationsCE / ISO 9001 / ISO 14001 / ISO 27001
OriginMADE IN LUXEMBOURG — CODIPRO

Working Load Limits by Thread Size

Reference Thread WLL 5:1 (lb) WLL 4:1 (lb) Weight (lb)
SEB U 038 UP UNC 3/8"-16 1,200 1,500 0.53
SEB U 050 UP UNC 1/2"-13 1,800 1,950 0.53
SEB U 058 UP UNC 5/8"-11 3,200 4,000 1.76
SEB U 075 UP UNC 3/4"-10 4,750 5,900 1.76
SEB U 100 UP UNC 1"-8 7,500 9,300 5.73
SEB U 125 UP UNC 1-1/4"-7 12,200 13,800 6.17
SEB U 150 UP UNC 1-1/2"-6 20,000 25,000 15.43
SEB U 200 UP UNC 2"-4.5 33,000 35,200 16.09
⚠

Never exceed the rated Working Load Limit. Always torque to the specified value before use. Always follow applicable domestic safety regulations. Inspect before every use — remove from service if deformed, cracked, or damaged.

CE │ ISO 9001 │ ISO 14001 │ 360° SWIVEL │ CODITRACER Codipro Made in Luxembourg
