Order Sheet
| SKU | WLL | Price | Qty | |
|---|---|---|---|---|
| AGT-0100 | 1 t | $1,029.00 | ||
| AGT-0200 | 2 t | $1,411.00 | ||
| AGT-0300 | 3 t | $1,489.00 | ||
| AGT-0600 | 6 t | $2,043.00 | ||
| AGT-1000 | 10 t | $4,203.00 |
AGT-0100$1,029.00
AGT-0200$1,411.00
AGT-0300$1,489.00
AGT-0600$2,043.00
AGT-1000$4,203.00
Capacity Range1–10 T
Beam Range3.0"–12.0"
Drive TypeGEARED

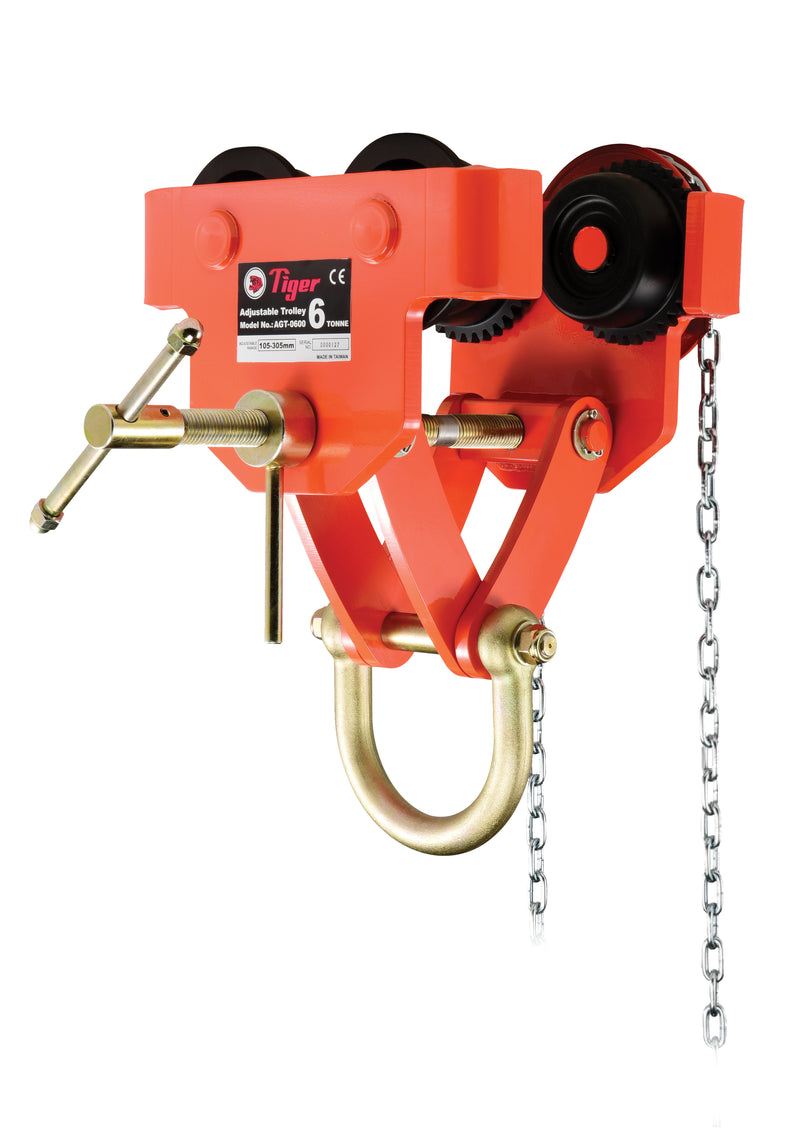

TIGER LIFTING — ADJUSTABLE GEARED TROLLEY · AGT SERIES · 1 T – 10 T · TAIWAN
The Tiger Adjustable Geared Trolley (AGT Series) is a quick-adjust geared trolley. Tool-free width adjustment for rapid deployment across a wide range of I-beam flange widths, with geared drive for load positioning.
- Quick-adjust — tool-free beam width adjustment
- Hand geared drive for load positioning
- Capacity range: 1 t – 10 t
- Wide beam flange compatibility
- Made in Taiwan
SeriesAGT SERIES
TypeMANUAL TROLLEY
Capacity Range1 T — 10 T
ShippingLTL ON LARGER MODELS
Country of OriginTAIWAN
HS Code8431.10.0090
Model Lineup — 5 Variants
| Part Number | WLL | Beam Flange | Ship Weight | LTL |
|---|---|---|---|---|
| AGT-0100 | 1 T | 3.00" – 8.00" | 36 LB | — |
| AGT-0200 | 2 T | 3.00" – 8.00" | 42 LB | — |
| AGT-0300 | 3 T | 3.00" – 8.00" | 67 LB | — |
| AGT-0600 | 6 T | 4.13" – 12.00" | 95 LB | — |
| AGT-1000 | 10 T | 6.30" – 12.00" | 324 LB | LTL |
⚠
Verify beam flange width and thickness are within the trolley's rated range before loading. Never exceed the rated WLL. Inspect side plates, axles, wheels, and anti-drop plates before every use. Ensure beam ends have proper stops to prevent roll-off. Remove from service if wheels are worn, axles show deformation, or anti-drop hardware is damaged. Larger capacities ship LTL freight — confirm delivery address accepts LTL before ordering.
ASME B30.11 · HS 8431.10.0090Tiger LiftingManual Trolley — Adjustable Geared Trolley
