Image may not match exactly. Refer to the specs.
Schematic

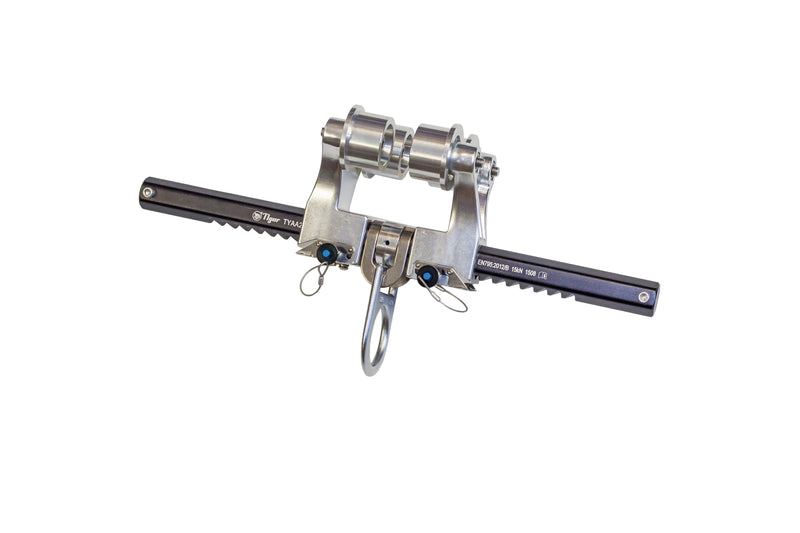

Tiger TYAA Beam Anchor, 2.5" – 12.00", Fixed · Single-Jaw
SKU TYAA141
$585.00
Use it with
Green Pin 1" Bolt Type Shackle – 18,730 lb (8.5 tonnes) WLL – GPGHMB25$82.68
Liftgear LERS5 Endless Round Sling, Red13,200 lb WLL$24.72
Green Pin P-6703A Swivel Hoist Hook with Safety Latch – 11,900 lb (5.4 tonnes) WLL – HKK03A054$145.62
CM Super Strong 1/2" Screw Pin Anchor Shackle – 6,000 lb WLL – M650G$24.10
Details
Capacity Range—
Beam Range2.5" – 24.0"
Use TypeFIXED/ROLLING
TIGER LIFTING — BEAM ANCHOR · TYAA SERIES · TAIWAN
The Tiger Beam Anchor (TYAA Series) is a fixed sliding jaw beam anchor for fall arrest. EN 795 Type B certified for use as a temporary anchor point for personal fall protection systems and horizontal lifelines on structural I-beams.
- Sliding jaw beam anchor — fixed type
- EN 795 Type B certified
- For use with personal fall protection systems
- Horizontal and vertical use (single-jaw models)
- Made in Taiwan
SeriesTYAA SERIES
TypeFALL ARREST
Country of OriginTAIWAN
HS Code7616 99 50 003
Model Lineup — 6 Variants
| Part Number | WLL | Beam Range | Ship Weight | LTL |
|---|---|---|---|---|
| TYAA141 | — | 2.5" – 12.00" | 7 LB | — |
| TYAA142 | — | 2.5" – 18.00" | 7 LB | — |
| TYAA143 | — | 2.5" – 24.00" | 8 LB | — |
| TYAA211 | — | 2.5" – 12.00" | 6 LB | — |
| TYAA213 | — | 2.5" – 24.00" | 8 LB | — |
| TYAA232 | — | 2.5" – 18.00" | 9 LB | — |
⚠
Beam anchors for fall arrest must be installed and inspected by a competent person before use. Use only as part of a complete personal fall arrest system (PFAS). Verify compatibility with connected components per OSHA and manufacturer guidelines. Inspect before every use — remove from service immediately if deformation, corrosion, or wear is present. Anchor strength requires 5,000 lb minimum per user per OSHA 1926.502.
EN 795 / TYPE B · HS 7616 99 50 003Tiger LiftingFall Arrest — Beam Anchor
