Order Sheet
| SKU | WLL | Price | Qty | |
|---|---|---|---|---|
| TGS-0100-8 | 1 t | $450.00 |
|
|
| TGS-0200-8 | 2 t | $567.00 |
|
|
| TGS-0300-8 | 3 t | $828.00 |
|
|
| TGS-0500-8 | 5 t | $1,321.00 |
|
TGS-0100-8
$450.00
TGS-0200-8
$567.00
TGS-0300-8
$828.00
TGS-0500-8
$1,321.00
Capacity Range1–5 T
Beam Range2.44"–7.63"
Drive TypeGEARED
TIGER LIFTING — GEARED TROLLEY · TGS SERIES · 1 T – 5 T · TAIWAN

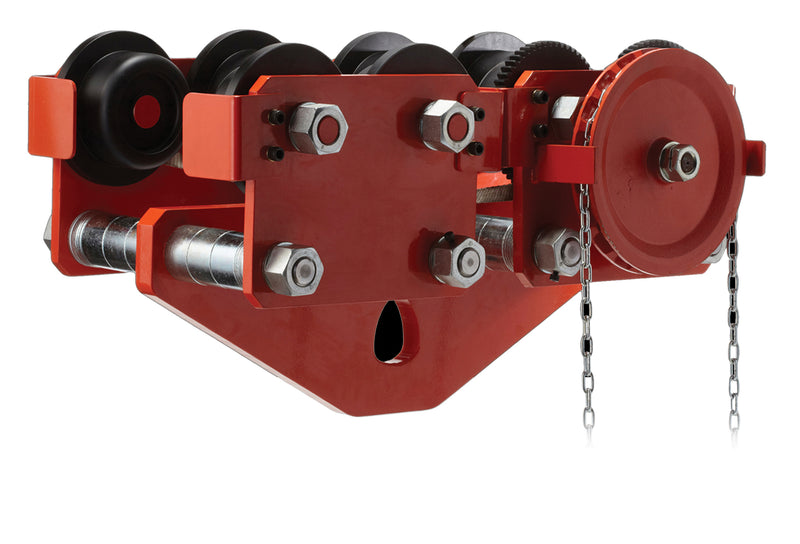

The Tiger Geared Trolley (TGS Series) is a geared trolley for use with hoists on I-beams. Geared drive delivers precise load positioning via a hand chain, with anti-drop plates for safety on the beam.
- Geared drive — precise load positioning
- Anti-drop plates prevent derailment
- Capacity range: 1 t – 5 t
- Fits standard I-beam flanges
- Made in Taiwan
SeriesTGS SERIES
TypeMANUAL TROLLEY
Capacity Range1 T — 5 T
Country of OriginTAIWAN
HS Code8431.10.0090
Model Lineup — 4 Variants
| Part Number | WLL | Beam Flange | Ship Weight | LTL |
|---|---|---|---|---|
| TGS-0100-8 | 1 T | 2.44" – 5.03" | 25 LB | — |
| TGS-0200-8 | 2 T | 3.46" – 6.06" | 37 LB | — |
| TGS-0300-8 | 3 T | 3.46" – 6.06" | 55 LB | — |
| TGS-0500-8 | 5 T | 4.17" – 7.63" | 80 LB | — |
⚠
Verify beam flange width and thickness are within the trolley's rated range before loading. Never exceed the rated WLL. Inspect side plates, axles, wheels, and anti-drop plates before every use. Ensure beam ends have proper stops to prevent roll-off. Remove from service if wheels are worn, axles show deformation, or anti-drop hardware is damaged.
ASME B30.11 · HS 8431.10.0090Tiger LiftingManual Trolley — Geared Trolley
