Order Sheet
| SKU | WLL | Price | Qty | |
|---|---|---|---|---|
| TPT-0600 | 6 t | $2,634.00 |
|
|
| TPT-1000 | 10 t | $3,339.00 |
|
TPT-0600
$2,634.00
TPT-1000
$3,339.00
Capacity Range6–10 T
Beam Range4.17"–12.59"
Drive TypePUSH

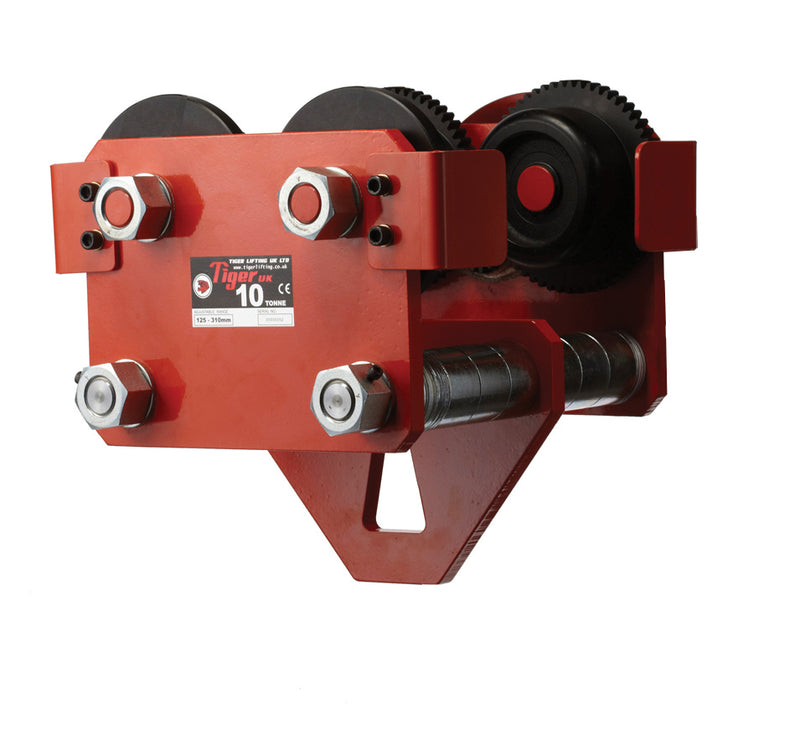

TIGER LIFTING — TWIN BAR PUSH TROLLEY · TPT SERIES · 6 T – 10 T · TAIWAN
The Tiger Twin Bar Push Trolley (TPT Series) is a heavy-duty twin bar push trolley for high-capacity lifts. Twin bar distribution with push-type operation for manually positioned loads on wide-flange beams.
- Twin bar push trolley — high-capacity
- Manual push positioning
- Capacity range: 6 t – 10 t
- Anti-drop retention
- Made in Taiwan
SeriesTPT SERIES
TypeMANUAL TROLLEY
Capacity Range6 T — 10 T
ShippingLTL ON LARGER MODELS
Country of OriginTAIWAN
HS Code8431.10.0090
Model Lineup — 2 Variants
| Part Number | WLL | Beam Flange | Ship Weight | LTL |
|---|---|---|---|---|
| TPT-0600 | 6 T | 4.17" – 8.07" | 85 LB | — |
| TPT-1000 | 10 T | 5.91" – 12.59" | 313 LB | LTL |
⚠
Verify beam flange width and thickness are within the trolley's rated range before loading. Never exceed the rated WLL. Inspect side plates, axles, wheels, and anti-drop plates before every use. Ensure beam ends have proper stops to prevent roll-off. Remove from service if wheels are worn, axles show deformation, or anti-drop hardware is damaged. Larger capacities ship LTL freight — confirm delivery address accepts LTL before ordering.
ASME B30.11 · HS 8431.10.0090Tiger LiftingManual Trolley — Twin Bar Push Trolley
