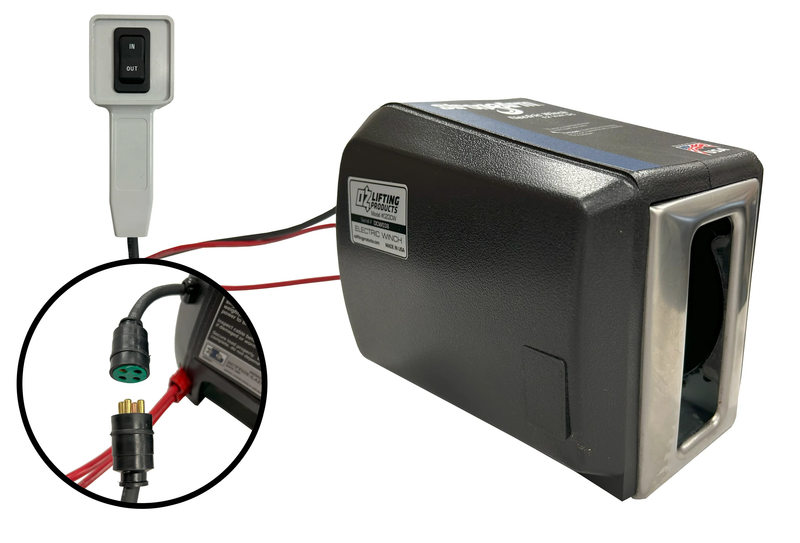

OZ Lifting Electric Winch 12V with Overload Protection – 1,200 lb WLL – OZDCW
SKU OZDCW
$1,609.30
Returns need our approval first. Return policy
Use it with
OZ Lifting 3/16" Galvanized Cable Assembly, 70 ft Lift, Ball End and Latched Swivel Hook – OZGAL.19-70B$126.08
Yoke 8-502-02 Light Snatch Block with Hook, 3" Sheave, 8–10 mm RopeWLL 4,400 lb (2 tonnes)$223.20
CM Super Strong 1/4" Screw Pin Anchor Shackle – 1,500 lb WLL – M646G$14.50
OZ Lifting 5/16" Synthetic Rope Assembly, 45 ft Lift, Latched Swivel Hook – OZSR.31-45$589.88
Details
The OZ DC Electric Winch delivers reliable and efficient lifting power with its advanced features designed for demanding tasks. This winch is equipped with a dual braking system, incorporating both mechanical and dynamic brakes to ensure secure handling of loads. The gearing is fully enclosed and built with machine-cut, hardened gears to enhance durability and performance. With a net weight of 24 pounds, the OZDCW remains lightweight while offering robust functionality. It includes a 10-foot pendant and a 25-foot power cord, providing flexible operation and ease of use. The quick connection feature allows for seamless integration with OZ davit cranes, and the winch easily bolts onto the crane for hassle-free setup. The OZDCW supports a lifting capacity of up to 1200 pounds and can handle 3/16” diameter cable (up to 90 feet) or 1/4” diameter cable (up to 45 feet). Powered by a 0.6 HP motor and operating at 12V DC with a full load amperage of 70A, it offers powerful performance for various lifting applications. Supported by a 1-year limited warranty, the OZDCW provides reliable and efficient operation for both commercial and industrial use.
- Two-braking system mechanical and dynamic
- Fully-enclosed gearing
- Machine-cut and hardened gears
- Lightweight
- Emergency handle
- Easy bolt on winch to OZ davit cranes
- Pendant and power cord included
