Wire Rope1/4 – 3/8"
WLL Range2 T
Safety Factor4×WLL

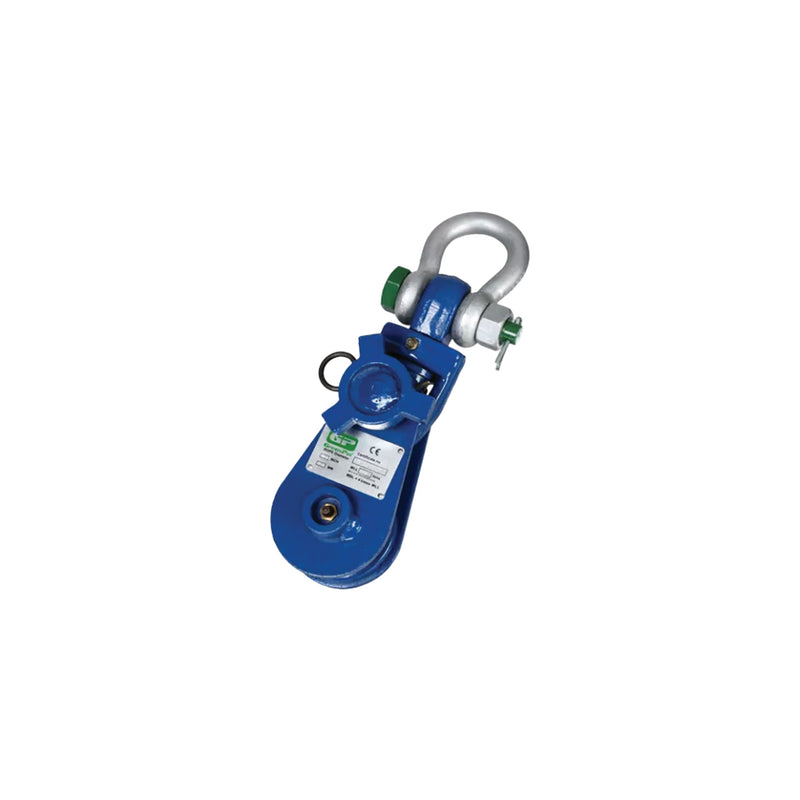

The Green Pin® Snatch Block S (Type 601S) fitted for 1/4 – 3/8" wire rope. Carbon steel construction with conical roller bearings and a Green Pin® shackle headfitting for quick repositioning without unreeving. Side plates open for mid-line rope entry. WLL is marked on the headfitting. Select your required WLL from the variant options above.
- Green Pin® shackle headfitting — reposition without unreeving rope
- Carbon steel, conical roller bearings
- Side plates open for mid-line rope entry
- Safety factor: MBL = 4 × WLL
- Painted finish · Certified: 2.1, 2.2, MTC, CE IIA
Wire Rope Diameter1/4 – 3/8"
Type601S — SNATCH BLOCK WITH SHACKLE
MaterialCARBON STEEL
BearingsCONICAL ROLLER BEARINGS
HeadfittingGREEN PIN® SHACKLE
Safety FactorMBL = 4 × WLL
FinishPAINTED
Certification2.1 · 2.2 · MTC · CE IIA
WLL LocationMARKED ON HEADFITTING
Available WLL Options
| WLL | Sheave OD |
|---|---|
| 2 t | 3" |
⚠
WLL is marked on the headfitting — verify before every use. Never exceed the rated WLL. Inspect sheave, side plates, shackle pin, and wire rope before each use. Remove from service if sheave is cracked, bearings are seized, or shackle shows deformation or wear.
TYPE 601S · 2.1 · 2.2 · MTC · CE IIA · MBL = 4 × WLLGreen Pin®Van Beest — Snatch Block S
