Order Sheet
| SKU | WLL | Price | Qty | |
|---|---|---|---|---|
| BKOFFSH0615 | 15 Ton - 6" Sheave | $1,539.90 |
|
|
| BKOFFSH0815 | 15 Ton - 8" Sheave | $1,671.01 |
|
|
| BKOFFSH1015 | 15 Ton - 10" Sheave | $1,616.90 |
|
|
| BKOFFSH1215 | 15 Ton - 12" Sheave | $2,200.41 |
|
|
| BKOFFSH1615 | 15 Ton - 16" Sheave | $3,236.52 |
|
BKOFFSH0615
$1,539.90
BKOFFSH0815
$1,671.01
BKOFFSH1015
$1,616.90
BKOFFSH1215
$2,200.41
BKOFFSH1615
$3,236.52
Wire Rope1 – 1 1/16"
WLL Range15 T – 15 T
Safety Factor4×WLL

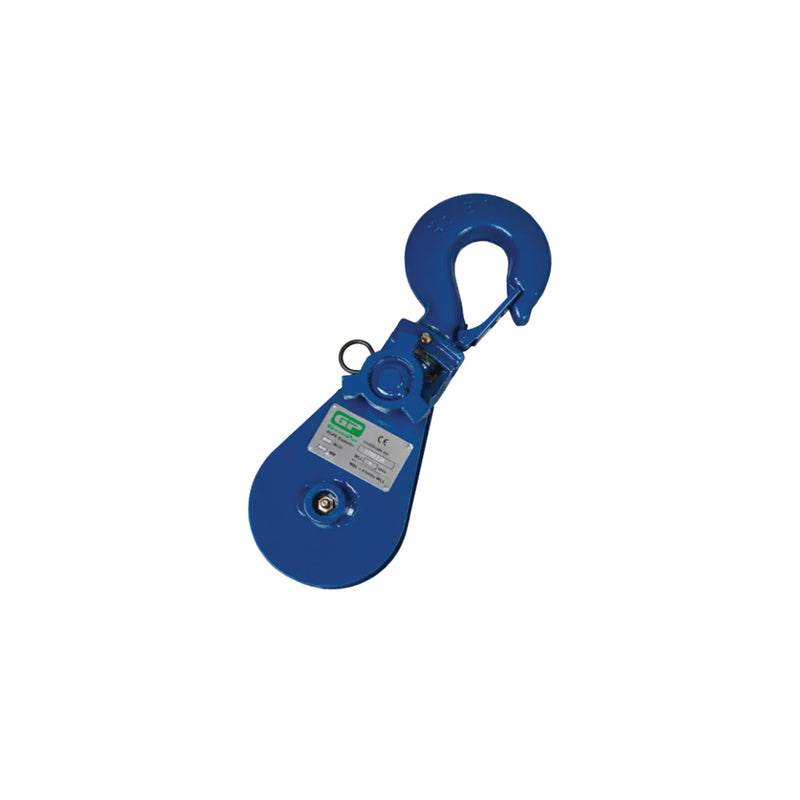

The Green Pin® Snatch Block HK (Type 601HK) fitted for 1 – 1 1/16" wire rope. Carbon steel construction with conical roller bearings and a hook headfitting for fast attachment and detachment without tools. Side plates open for mid-line rope entry. WLL is marked on the headfitting. Select your required WLL from the variant options above.
- Hook headfitting — fast attach/detach without tools
- Carbon steel, conical roller bearings
- Side plates open for mid-line rope entry
- Safety factor: MBL = 4 × WLL
- Painted finish · Certified: 2.1, 2.2, MTC, CE IIA
Wire Rope Diameter1 – 1 1/16"
Type601HK — SNATCH BLOCK WITH HOOK
MaterialCARBON STEEL
BearingsCONICAL ROLLER BEARINGS
HeadfittingHOOK WITH LATCH
Safety FactorMBL = 4 × WLL
FinishPAINTED
Certification2.1 · 2.2 · MTC · CE IIA
WLL LocationMARKED ON HEADFITTING
Available WLL Options
| WLL | Sheave OD |
|---|---|
| 15 t | 6" |
| 15 t | 8" |
| 15 t | 10" |
| 15 t | 12" |
| 15 t | 16" |
⚠
WLL is marked on the headfitting — verify before every use. Never exceed the rated WLL. Do not use if hook latch is damaged or missing. Inspect sheave, side plates, hook, and wire rope before each use. Remove from service if sheave is cracked or bearings are seized.
TYPE 601HK · 2.1 · 2.2 · MTC · CE IIA · MBL = 4 × WLLGreen Pin®Van Beest — Snatch Block HK
