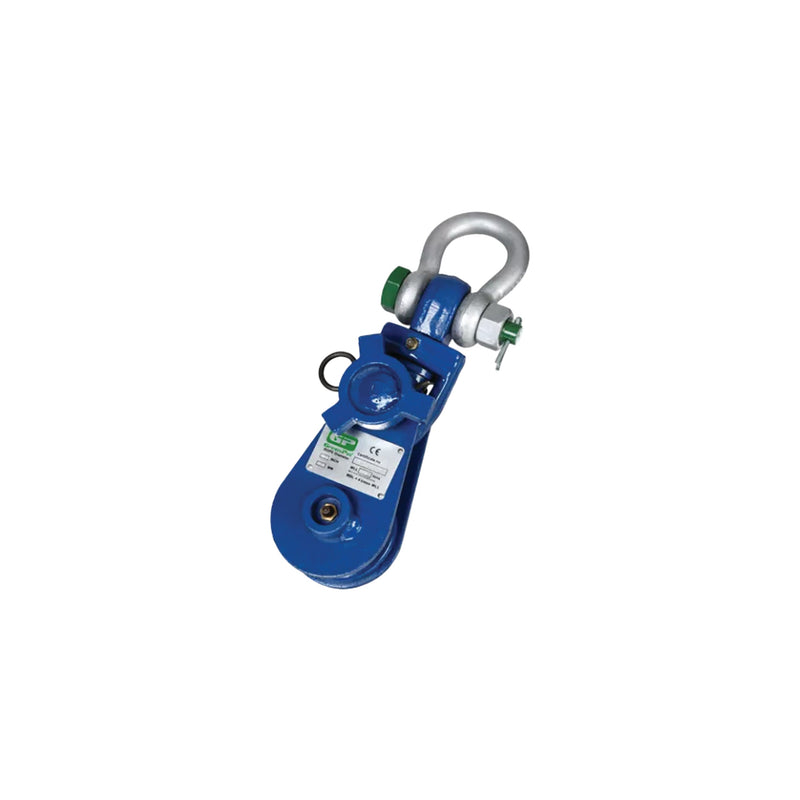

Green Pin S Snatch Block for 1-1/8"–1-1/2" Wire Rope, 1-1/8"–1-1/2", 70,540 lb (32 tonnes), 18-3/8"
SKU BKOFFSS1832
$12,924.50
Returns need our approval first. Return policy
Image may not match exactly. Refer to the specs.
SKU BKOFFSS1832
$12,924.50
Returns need our approval first. Return policy
Your cart
Your cart is empty.
Browse products79,360lb
Working load limit, on the headfitting, largest in this range36 tonnes
A snatch block with a Green Pin shackle at the top, for turning a wire rope line or doubling a pull. It takes 1-1/8"–1-1/2" rope; sheaves run from 18-3/8" to 19-7/8" outside diameter. The side plate opens, so the rope goes in mid-line.
Carbon steel on conical roller bearings, painted. The rating is marked on the headfitting and is the load there, which is more than the line pull once rope turns through the block: close to twice with the two parts parallel.
| Part no. | Capacity | Sheave OD | Overall length | Inside width | Outside width |
|---|---|---|---|---|---|
| BKOFFSS1832 | Capacity70,540 | Sheave OD18.39 in (467 mm) | Overall length43.74 in (1,111 mm) | Inside width5.43 in (138 mm) | Outside width18.9 in (480 mm) |
| BKOFFSS2032 | Capacity70,540 | Sheave OD19.88 in (505 mm) | Overall length45.35 in (1,152 mm) | Inside width5.43 in (138 mm) | Outside width20.47 in (520 mm) |
| BKOFFSS2036 | Capacity79,360 | Sheave OD19.88 in (505 mm) | Overall length47.28 in (1,201 mm) | Inside width6.3 in (160 mm) | Outside width20.47 in (520 mm) |
lb for capacity, in (mm) for dimensionsGreen Pin P-6951 specification table
